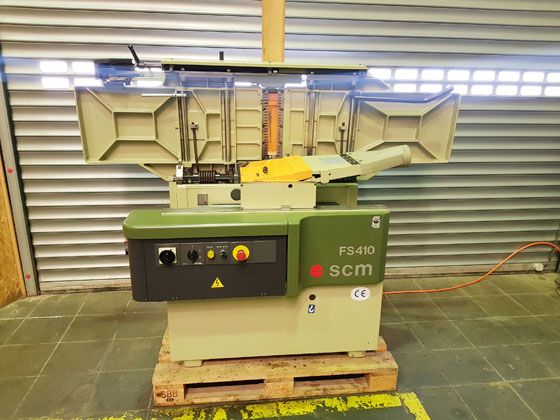

SCM FS 410

Combined surface and thickness planer
Working width: 410 mm
Working height: 240 mm
Total length of working table: 2050 mm
Dimension Abrichtanschlag: 1100 x 170 mm
Inclination of the Abrichtanschlages: 45 °
Rotational speed of the cutter shaft: 5,000 r / min
Axle diameter: 120 mm
Feed rate thicknesser: 6-12 m / min.
Divided pickup roller - steel
Outfeed roller steel Raustrukturiert
Swivel auxiliary fence for planing thin strips
Rapid setting of the jointer thicknesser
Planer Pneumatically be folded up / lowered
Motorized Thickness table with digital display
Motor power: 5.5 kW with Automatic motor brake
Motor for feed 0.55 / 0.75kW
Motor for height adjustment 0.18kW
Working height 830mm
Suction diameter jointer: 120 mm
Suction diameter thicknesser: 120 mm
Approximate weight: 700 kg
