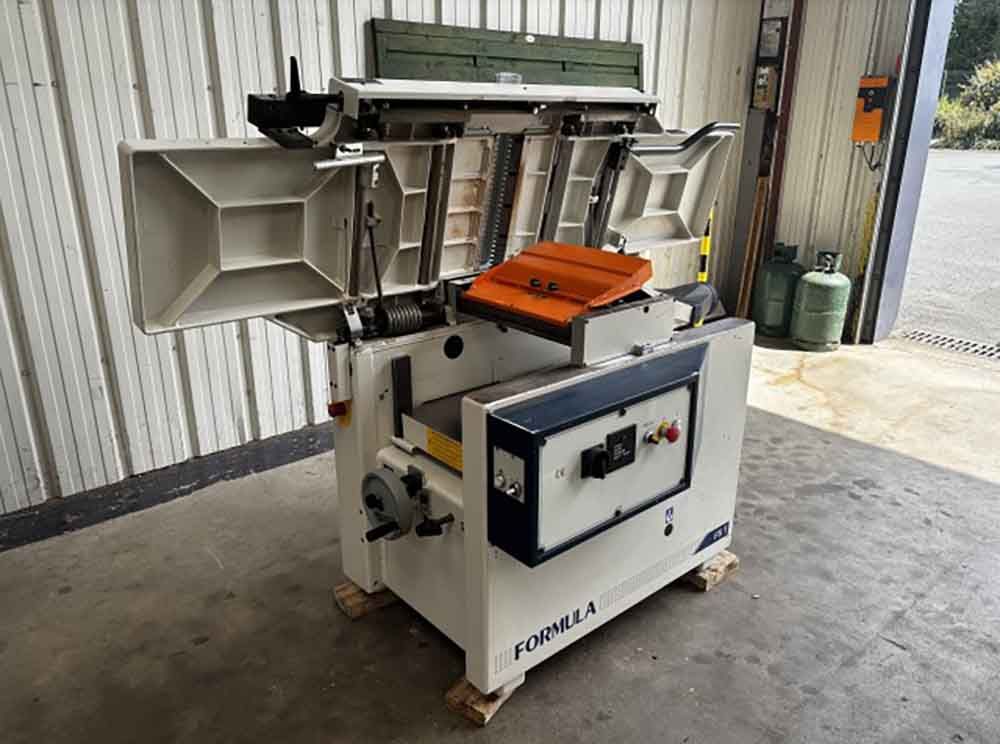

SCM FS1

JOINTER PLANER
MAKING CAPACITIES:
Joiner
- Useful working width: 410 mm
- Cast iron worktop, length: 2070 mm
Infeed table: 1000x500 mm
Outfeed table: 1000x500 mm
Soundproof lips
- Worktop height: 880 mm
- Continuously tilting fence from 45 to 90° (WxH): 1200x190 mm
- Maximum infeed: 6 mm
- Spindle speed: 5000 rpm
Planer:
- Maximum wood section (thickness x width): 240x410 mm
- Minimum working length: 180 mm
- Cast iron table (LxW): 800x410 mm
- Manual positioning and precision adjustment
- Helical infeed and smooth outfeed pressure rollers
- Feed speed: 6 and 12 m/min

OTHER FEATURES:
- Power supply: 380 V, three-phase 50 Hz
- Automatic star-delta starting
- 4 kW (5.5 hp) motor with brake
- 0.3 kW drive motor
- Shaft Ø100x410 mm
- 4 Blades (blades) 410x35x3 mm
- Suction inlet Ø120 mm
Required air flow: 1050 m3/h, air speed: 20 m/s
- CE marked, disconnect switch Padlockable, front/rear punch stops
Dimensions (LxWxH): 2070x1200x1900 mm
Weight: 615 kg
