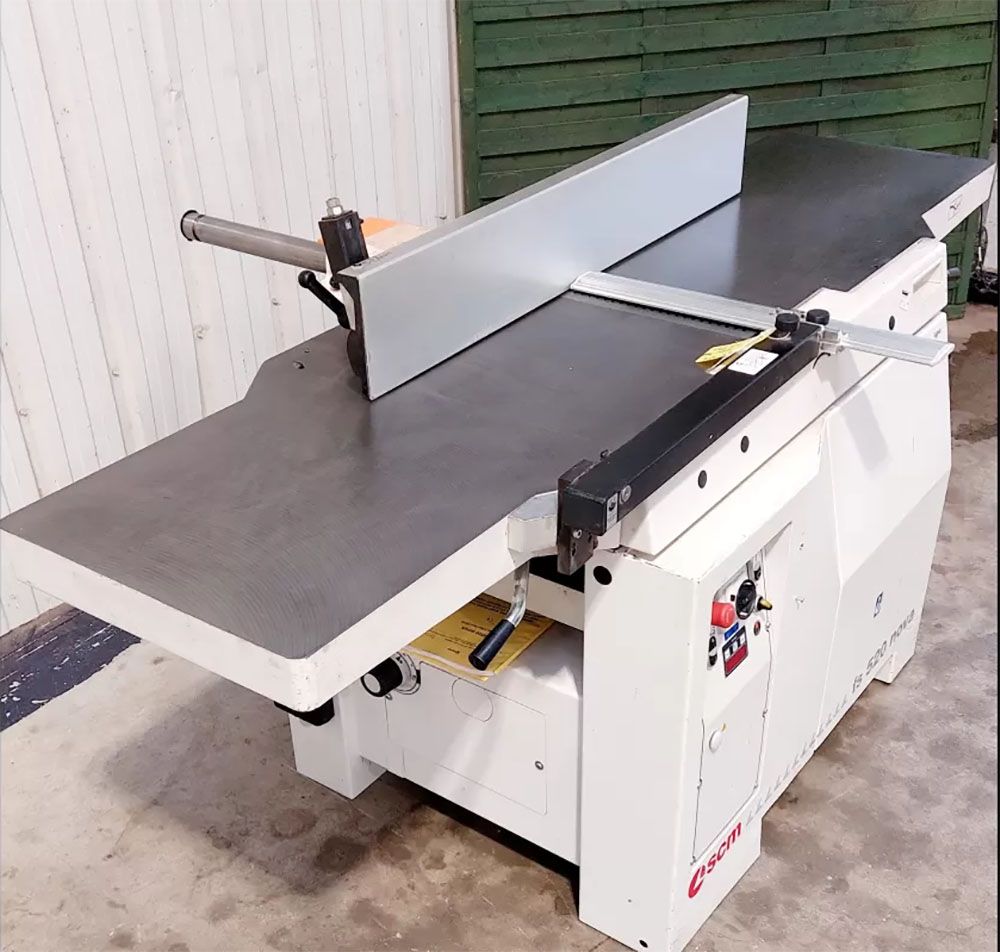

SCM FS520 NOVA

Combination Planer/Thicknesser
MACHINING CAPABILITIES:
Jointer:
- Usable working width 520 mm
- Cast iron worktop, length 2250 mm
Noise-reducing lips
- Worktop height 93 cm
- Continuously tiltable guide (W x H): 1200 x 190 mm
- Maximum feed size 5 mm (for both operations)
- Shaft speed 5200 rpm

Planer:
- Maximum wood section (thickness x width): 240 x 520 mm
- Minimum working length: mm
- Cast iron table (L x W) 850 x 520 mm with electrical positioning
Digital display showing the dimension (+ ruler)
- Helical drive pressure rollers at the inlet and smooth at the outlet
- Training speeds 5-8-12-18 m/min

OTHER FEATURES:
- 400V power supply. Three-phase 50Hz
- Automatic star-delta start
- 7 kW (9.5 hp) motor - Shaft: Ø x mm
- 4 Knives 30 x 3 x 520 mm
- Suction inlets Ø120 mm
Recommended minimum flow rate: 814 m³/h at 20 m/sec (28 m/sec for non-dry wood)
- CE marking, lockable disconnect switch, front/rear emergency stop buttons, motor brake
Dimensions (LxWxH): 2.25 x 1.10 x 1.20m
Weight: 701 kg
