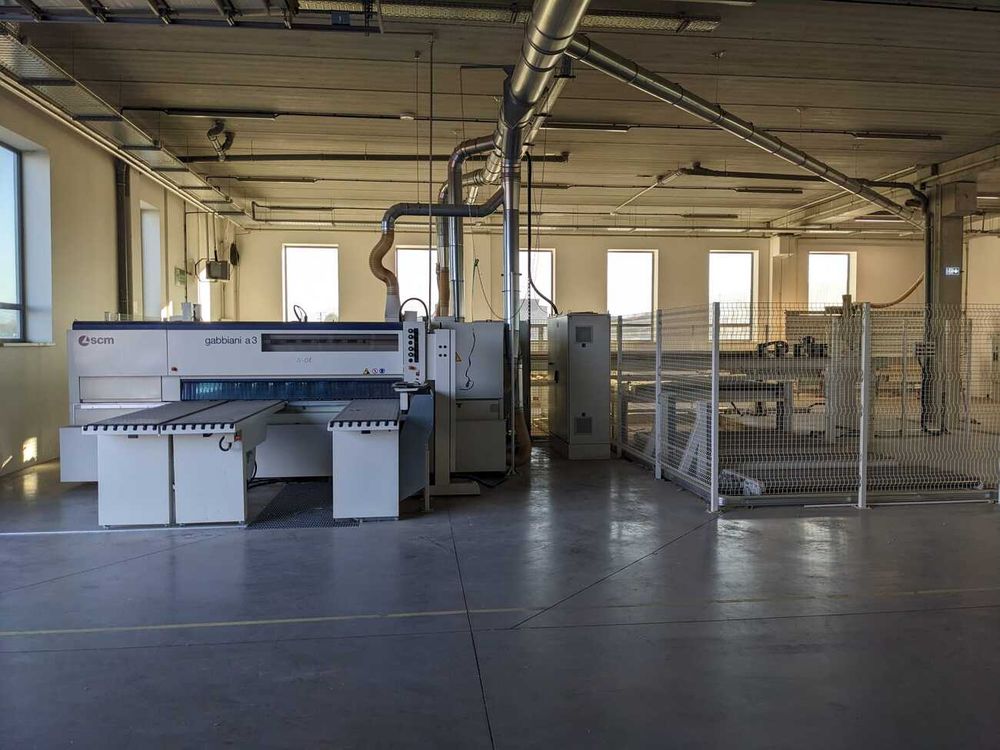

SCM Gabbiani A3 130

Automatic angular cutting saw for cutting panel packages with longitudinal and cross-cutting capability and liftable loading table

Technical data:
Software: “WinCut”

Label editor
- Option to create labels and print them on a barcode printer

Online diagnosis

Working height :
Longitudinal cutting range: 970 mm
Cross-cutting range: 970 mm

Cutting length:
Longitudinal cutting range: 3200 mm
Cross-cutting range: 2440 mm

Saw blade overhang :
Longitudinal cutting range: 130 mm
Cross section: 130 mm

Saw blade diameter of main saw max. 430 mm
Main saw motor 18 kW
Main saw speed 3500 rpm
Saw blade diameter of scoring saw 200 mm
Scoring saw motor 1.5 kW
Pre-cutter speed 4300 rpm

Saw carriage speed:
Longitudinal cutting range: 0 - 170 m/min
Cross cutting range: 0 - 170 m/min

Saw carriage return speed:
Longitudinal cutting range: 170 m/min
Cross cutting range: 170 m/min

Speed of the sliding bar :
Longitudinal cutting range: 0 -75 m/min
Cross-section: 0 -24 m/min (CE)

Return speed of the sliding bar :
Longitudinal cutting range: 75 m/min
Cross section: 75 m/min

Loading and unloading :
Min./max. length of panels: 1600 / 3200 mm
Min./max. panel width: 1200 / 2440 mm
Min./max. belt width: 100 / 2200 mm
Min. panel thickness: 10 mm
Min. width of edging: 15 mm
Minimum panel dimensions: 150 x 100 mm

Loading table :
Max. panel dimensions: 3200x2440 mm
Loading height: 600 mm
Max. loading weight: 6500 kg
Lifting/lowering speed: 0.75 m/min
Motor power: 0.75 kW

Extraction requirements:
Exhaust air speed: 28 m/s
Total exhaust air volume: 11600 m3/h
Diameter of extraction nozzles: 2x 150 mm / 5 x 120 mm

Compressed air:
Connection diameter: 1 / 2"
Total compressed air volume: 1200 Nl/min
Pressure: 7 bar

Electrical power :
Voltage: 400 V
Frequency: 50 Hz
Installed power: 35 kW

Machine in left-hand version
Machine manufactured in accordance with CE standards

EASYFIX quick mechanical fastening of the saws instead of pneumatic fastening
Advantages:
- Quick tool change, precise and easy handling
- Extremely secure fastening (20-24 kN)
- Safe, tested system

Tiltable side pressure rollers in the cross-cutting area
Vibration conveyor for waste after longitudinal cutting
Shredder for waste
Tiltable grippers in the longitudinal cutting area

FLEXCUT 02
2 movable sets with 3 double grippers each in the set

OTTIMO - PERFECT CUT TOP - for angle systems
EASY CUT - Connection program
