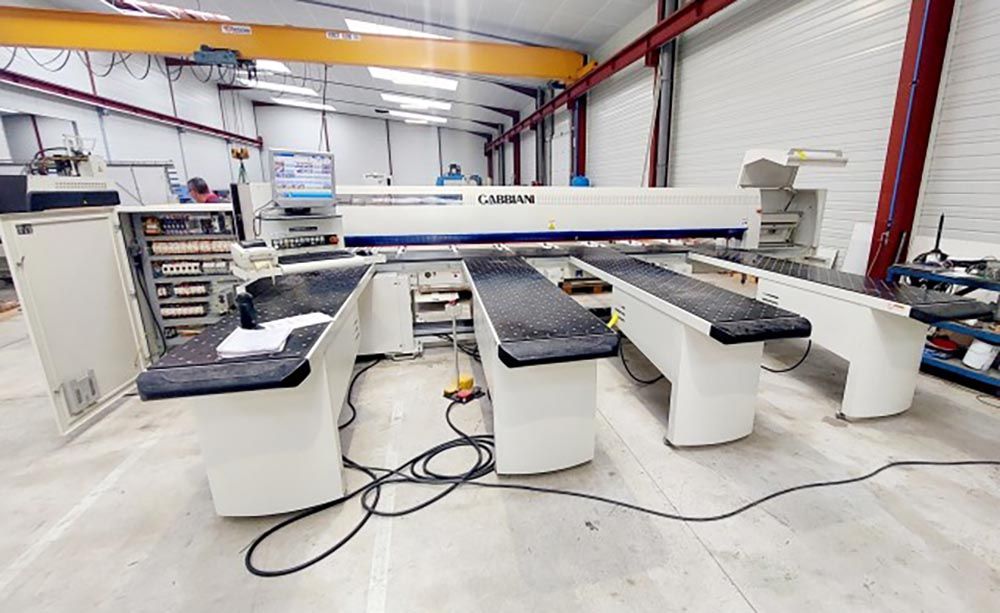

Gabbiani, SCM GALAXY 105

DIGITAL HORIZONTAL PANEL SAW
Type: Sez/Mon.S

MAKING CAPACITIES:
- Useful cutting height (thickness) 105 mm
- Maximum input format (Width x Depth) 4.55 x 4.35 m
- Main blade rotation speed 1000 or 5000 rpm
- Blade feed speed (carriage) variable from 0 to 150 m/min

MACHINE COMPOSITION
- Variable rear pusher equipped with 8 clamps
- Automatic pneumatic aligner (approach/approach)
- Saw carriage with variable speed drive
Blade lubrication unit
- Blades Main blade and scoring blade with pneumatic locking
- Main blade max. Ø380 mm, bore Ø80 mm
- Scoring blade max. Ø200 mm, bore Ø80 mm
Independently controlled scoring blade
- 1 fixed front air cushion table 2500x570 mm
- 3 mobile air cushion tables 2500x570 mm
- Control panel on a jib
PC running Windows XP 2.80 GHz Inel
Wincut 5.3.5 control software
Network connection
Self-adhesive label printer
- Cycle control also via remote foot pedal

TECHNICAL SPECIFICATIONS:
- General machine power supply 400V. Three-phase + Earth + North-West 50Hz IN nominal 56A
- 7.5 kW blade motor
Maximum blade projection 110 mm
- 1.5 kW scoring motor (2 hp)
- 0.75 kW blade carriage motor
- 0.75 kW pusher motor
- 4 x 0.5 kW motor fans
Suction:
- 1 Upper inlet Ø120 mm 2 Lower inlets Ø150 & 120 mm
Recommended flow rate 2900 m3/h speed 20 m/s for dry material
4060 m3/h speed 28 m/s for non-dry or heavy material
Overall pneumatic supply 7 bar
- 6 bar operating pressure
- CE marking, padlockable disconnect switch, palm switches

Installation footprint: 8.70 x 7.50 x h.2.10 m
Transport dimensions to be specified during preparation
Weight 3700 kg
