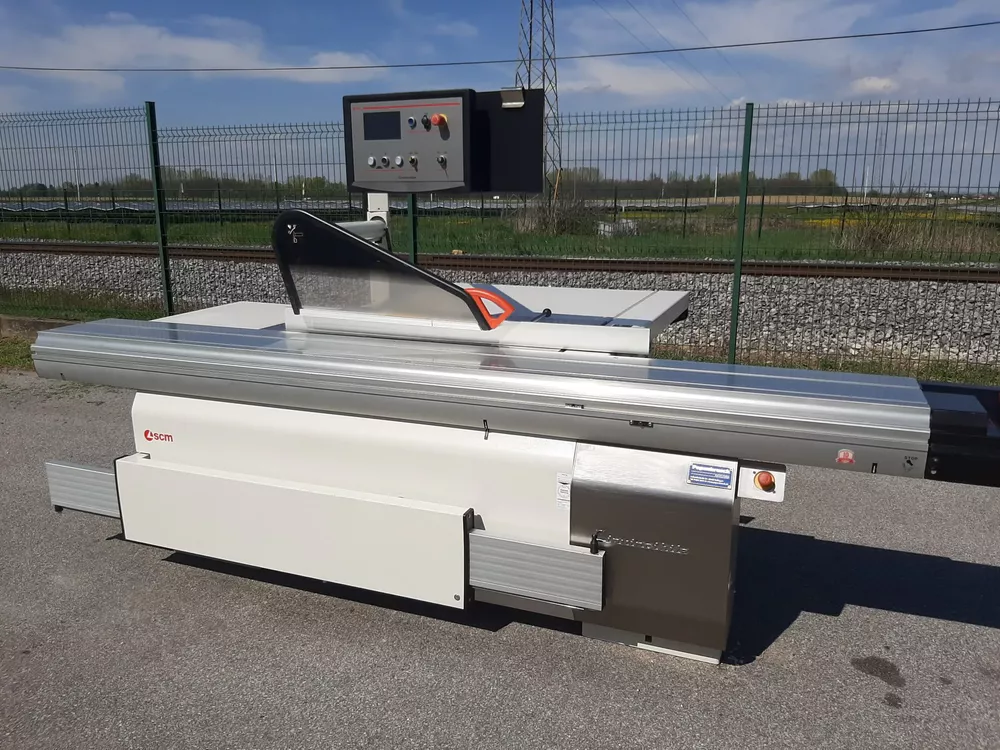

SCM LINVINCIBILE SI5

Panel Saw
Max saw diameter: 550mm
Screw diameter: 120mm
Screw diameter with scriber: 450×120
Saw tilt: 0/46 degrees
Max saw cut at 90*: 200
Max saw cut at 46*: 130mm
3 saw speeds: 2500/3500/5000 rpm
Saw motor: 7 kw- electric lifting - lowering / saw tilt
Screw motor: 1.3kw- electronic adjustment of the scriber
Max cut on the parallel guide: 1600mm
Two suction openings: lower 120mm - upper 100mm
Aluminum wagon: 3200mm- start -stop on the wagon
Upper mobile control
CompeX left guide with stops
Additional guide for angles
CE norm
