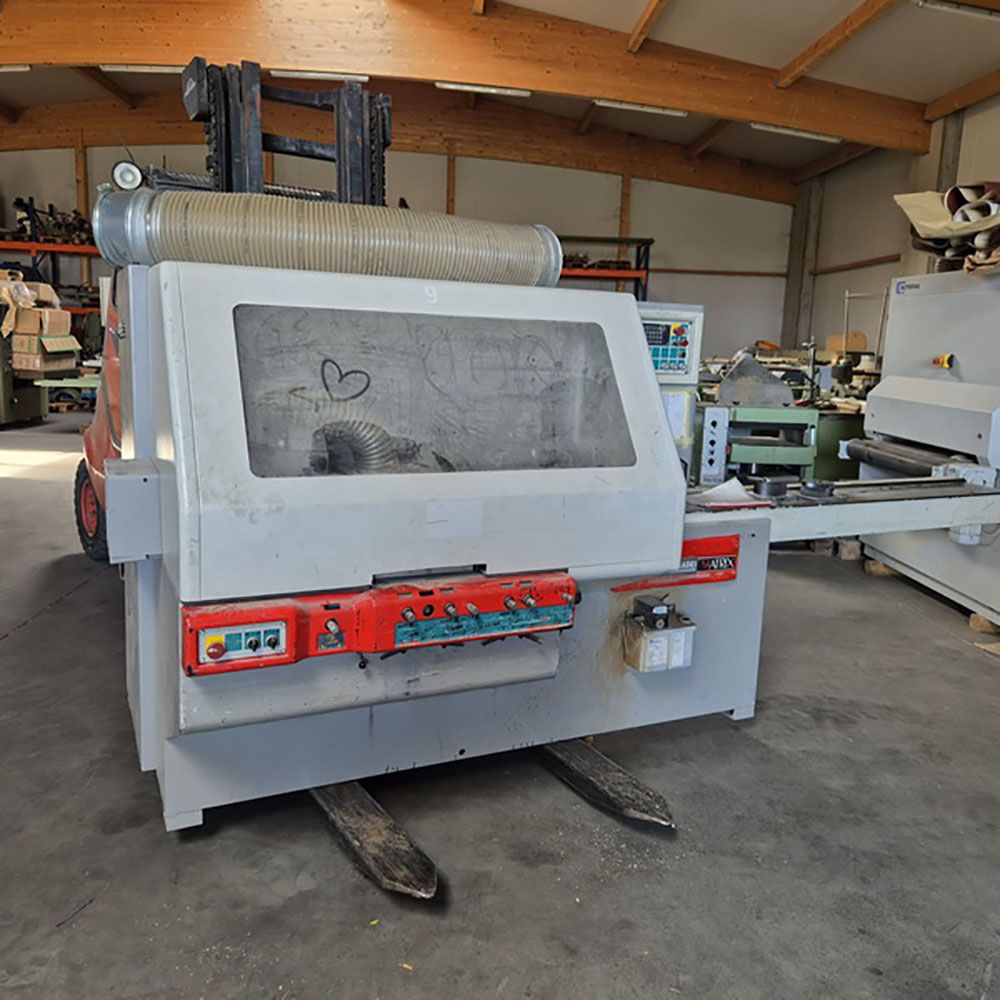

SCM Matrix A

Casadei Matrix A, same machine as SCM Compact O, R, L, U
– 2-axis control for positioning the units
– Four-sided planer and profiling machine
– Working width: 25 to 230 mm
– Working height (wood thickness): 6 to 155 mm
– Max. final workpiece cross-section: 155 x 230 mm
– Minimum workpiece length: 480 mm
– Max. adjustable chip removal: 10 mm
– Spindle speed: 6,000 rpm

MACHINE EQUIPMENT:
– Robust, welded machine frame
– Soundproofed, large-area hood with gas springs
– Elevated control panel on the operator side
– Steel infeed table 2,500 x 250 mm, table height: 880 mm
Side-mounted, spring-loaded infeed feed
Manual table lubrication behind the dresser,
1) Lower horizontal spindle 5.5 kW
2 & 3) Vertical spindles right and left, each 7.5 kW,
4) Upper horizontal spindle 7.5 kW

FEED:
– Feed speed, adjustable: 5 to 25 m/min
Feed motor: 1.1 kW (1.5 hp)

OTHER FEATURES:
– CE marking
– Power supply: 380 V three-phase, 50 Hz
– Lockable main switch, automatic star-delta starters, emergency stop front and rear
– Installed power: 37 kW (50 hp), IN 62A
– Braked motors
– Spindle drive via cardan shafts
Height adjustment motor: 0.37 kW

– Axial spindle adjustment:
Lower horizontal spindle: 0 to 15 mm
Upper horizontal spindle: 0 to 25 mm
Vertical spindles: 0 to 25 mm

– Permissible tool diameters:
Lower horizontal spindle: Ø 120 to 140 mm
Vertical spindles: Ø 100 to 180 mm
Upper horizontal spindle: Ø 100 to 180 mm
Face mill: Ø 140 x 12 x 40 mm

– Recommended compressed air supply: 7 bar
Working pressure: 6 bar
Average consumption: 0.85 Nl/cycle
Connection: 1/2″ G
Operating instructions and tools
