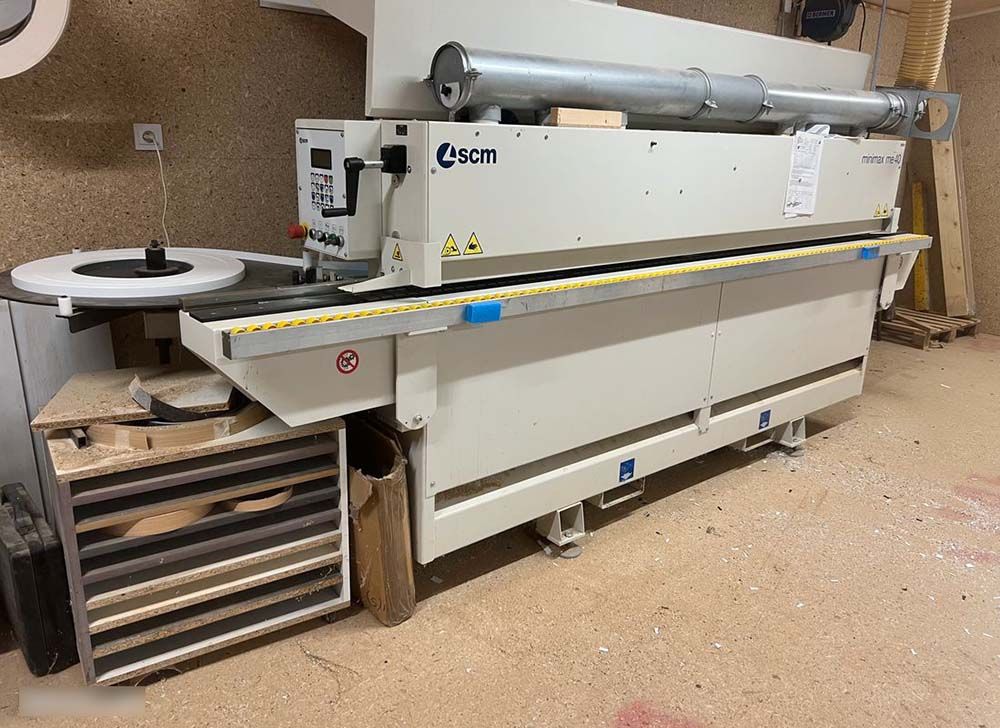

SCM ME 40 TR

In excellent condition, following the discontinuation of manufacturing, I am selling this edgebander. It works perfectly.
Automatic Edgebander
With Rounding Unit

▪ Input control panel for ease of use in all working conditions
▪ Mechanically welded steel frame with reinforcements for a highly rigid structure
▪ Upper steel presser with two rows of rubber pressure rollers
▪ Protective casing completely covering the rollers
▪ Manual presser lifting with automatic positioning of the operating units, according to the panel thickness
▪ Digital indicator of the selected panel thickness
▪ Panel transport by feed chain with high-grip rubber-coated pads and on a 3/4 industrial chain.
Slides move on two steel guides, one with a round cross-section the other with a flat cross-section, to ensure straight movement and resist lateral loads.
Manual slides
▪ Roller track for panel support along the entire length of the machine
▪ Dedicated glue fume extraction
▪ Protective cabin

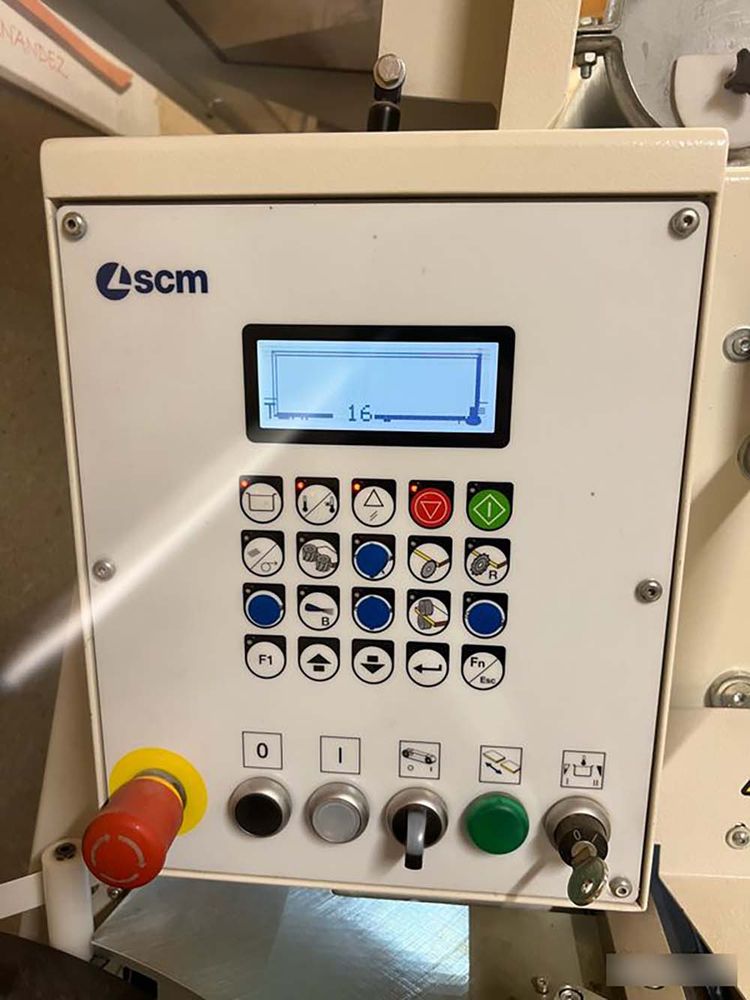

▪ PLC and 4-digit graphic display with large, illuminated characters, working language selection, keyboard
with "soft touch" keys and illuminated LEDs, setting and indication of the glue pot temperature.
▪ Electrical installation with encoder located on the sprocket of the transport track panel, lockable main switch and thermal relays, emergency stop button

GRINDING UNIT
With two 80 mm diameter diamond tools, the unit allows for optimal finishing and linearity of the panel during pre-machining.
Equipped with independent suction hoods and an air cushion device for panel cleaning,
the tools can be moved vertically for use during sharpening.

▪ GLUE POUCH, LOADING, AND EDGE PRESSURE UNIT equipped with:
Hot-melt glue pot with rapid heating and Teflon coating for easy glue changes
Glue roller with internal heating element to ensure a constant glue temperature
Applied glue temperature control integrated into the PLC
Automatic device for recovering unused glue
Automatic edge roll feeder with cutter for thin edges up to 3 mm thick
Rotating roll holder, diameter 730 mm
Pressure roller with 2 steel rollers with opposite taper
Automatic reduction of the glue pot temperature after a standby time
Self-lubrication of the glue pot

END CUTTING UNIT
With High-frequency motor for trimming excess edges at 90° in the front and rear parts of the panel.

▪ TRIMMERING UNIT
With high-frequency motors, equipped with horizontal rotary and vertical disc copiers for perfect alignment.
The unit is equipped with 55.3 mm diameter cutters, part of the cutting edge, for trimming
radiused edges (2 mm or 3 mm on request) and rounded edges.
The straight part of the cutting edge is used for trimming wooden edges up to 5 mm thick.
To change the position from radiused to wooden edges, simply move the cutters along the same axis.
The thickness is indicated by two digital indicators.
Extraction hoods included.

▪ ROUNDING UNIT
With high-frequency motors.
Operated from the control panel
Complete with: 1 high-frequency motor (0.35 kW - 12,000 rpm)
1 router bit (Ø 58 mm) Z4

Options:
▪ Automatic edge band feeder with magazine
▪ Panel heating device
▪ Edge scraper unit
▪ Glue scraper unit

+ 1 bag of glue
