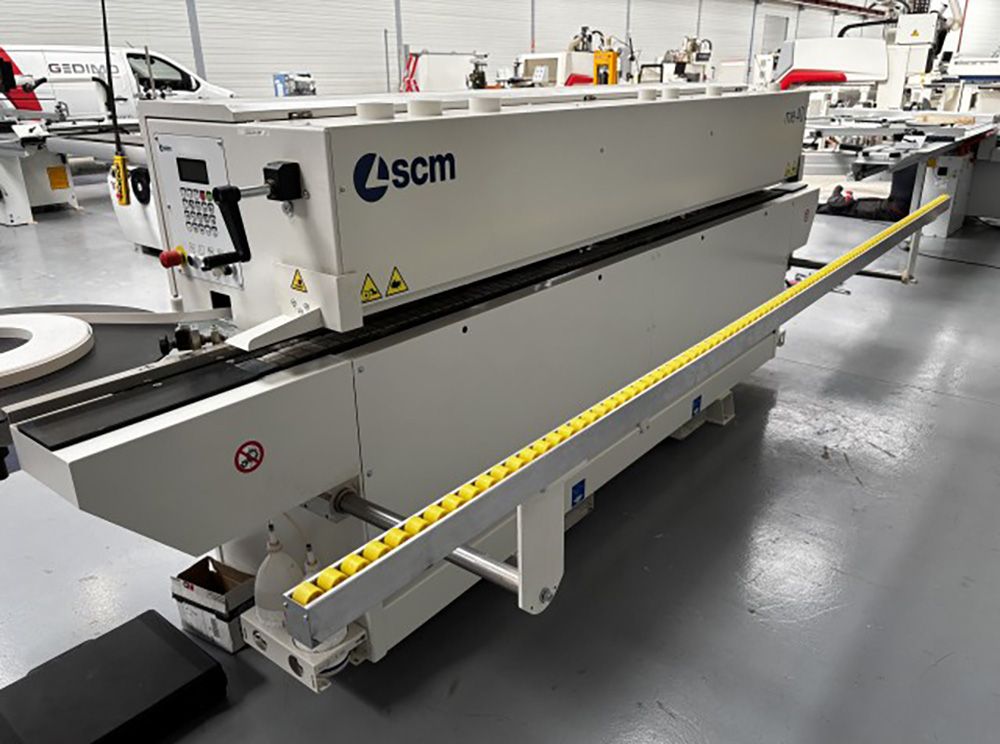

SCM ME 40TR

EDGE BANDER WITH ROUTER. EDGE PREHEATING. ROUNDING UNIT. ANTI-STICK SPRAY; Buffing and Fogging
MAKING CAPACITIES:
- Height (thickness) of the panel to be machined: 8 to 50 mm
- Minimum length of the panel to be machined: 190 mm
- Minimum width of the panel to be machined: 110 mm
- Edge thickness: 0.4 to 3 mm
- Edge width: 8 to 54 mm
- Maximum router pass clearance: 55 mm²
- Feed (feed speed): 9 m/min
- Gap between parts: 750 mm

MACHINE COMPOSITION:
- Feed table: Ø800 mm usable
- Worktable, front extension (length x width): 3460 x 730 mm
Work surface height from the floor: 88 cm
- Belt conveyor
- Anti-adhesion spray unit
- Infrared lamp for preheating the panel edge
- Edge dressing (2 spindles) 8500 rpm
- Gluing unit with tray (interchangeable)
Pneumatic pre-cutting cutter
3-roller pressing (including 1 motorized roller)
- End trimming unit with 1 saw-milling cutter Ø125 1200 rpm
- Top/bottom trimming unit, copying with skid, Quarter round cutter
- Rounding unit
- Edge scrapers
- Glue scraper
- Edge finishing spray device (nebulizer)
- Buffing station with textile polishing brush
Digital counters for adjustments (Siko type)

OTHER FEATURES:
- Main power supply: 400V. Three-phase + N+T 50Hz
- Installed power: 24 A
- Drive motor: 0.55 kW
- Router motor: 2.2 kW
- Saw motor: 0.2 kW
- Trimming motors (milling): 0.35 kW, rpm
- Brush motors: 2 x 0.13 kW
- Pneumatic supply: 8 to 10 bar
Working pressure: 6.5 bar
- Suction: mm
- CE marked, Padlockable disconnect switch, Mushroom stops
Dimensions (LxWxH): 3900x1500x2000 mm
Weight: 908 kg
