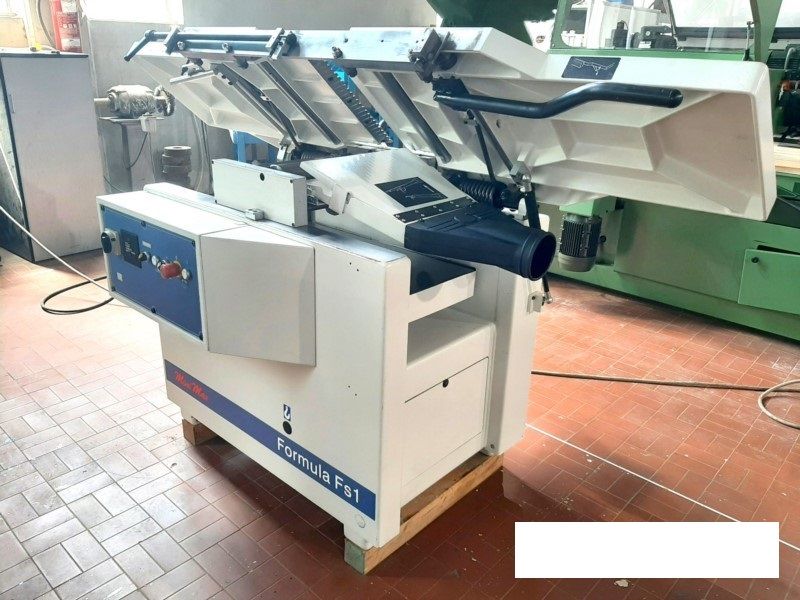

SCM MINIMAX FORMULA FS/1

Combined machine Surface/Thickness/Mortiser with “Tersa” Shaft for wood, joinery,
furniture, custom furniture, window frames, doors, plastics, composite materials and various - CE Standard

Technical data:
Shaft with N° 3 knives “Tersa”

Surface planer:
Working width mm 410
Table length mm 2100
Support guide size mm 1200 x 190
Support guide inclination from 90 to -45°

Thickness planer:
Working width mm 410
Working height mm 240 with height display
Max removal rate mm 5
Feed speed mt/min 6/12

Bit mortiser :
Cast iron table mm 400 x 180
Bit attachment diameter 16 mm
Workpiece clamping arm

Main motor Kw 5
Shaft rotation speed rpm 5000
Suction port diameter mm 120
Overall dimensions mm 2100 x 1300 x 1000 h
Weight kg 580
