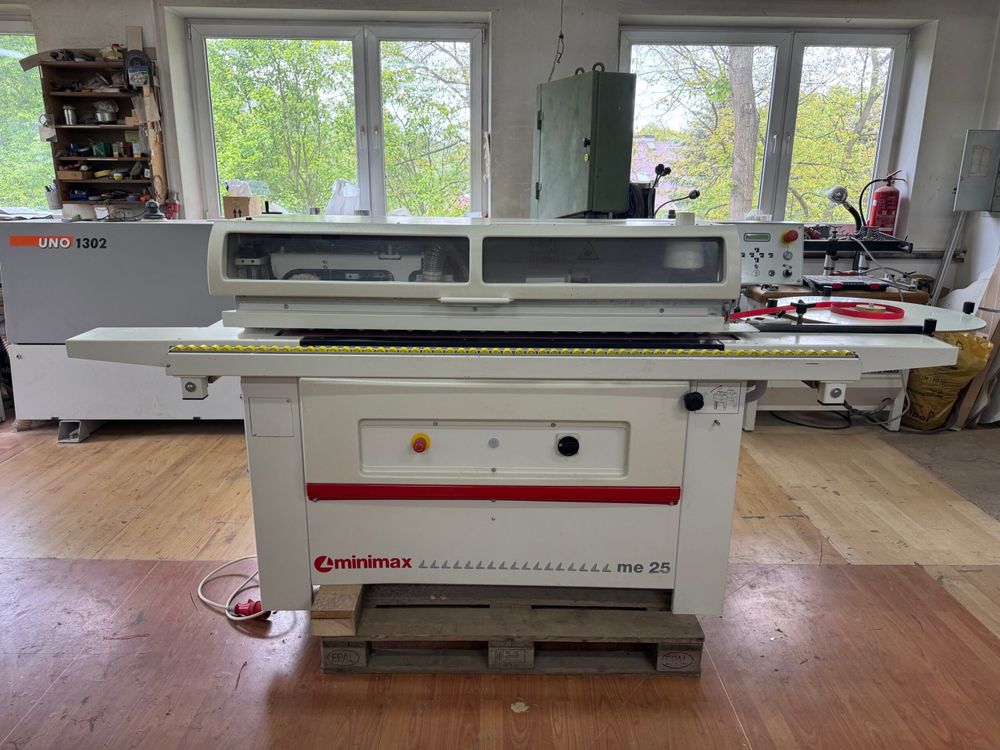

SCM Minimax ME25

Edge Banding Machine
Element thickness: 12-50 mm
Element thickness (with scraper switched on): 16-50 mm
Roll edge thickness 0.4-3 mm
Maximum thickness of wooden edging: up to 5 mm
Feed speed: 7 m/min
Minimum element dimension for roll edges: 190/65 mm
Minimum board length: 120 mm
Working pressure: 6.5 bar
Total heating power: 1.4 kW
Working temperature: ~190 – 220 ºC
Glue tank capacity: ~1 kg
Connector diameter: 120 mm
Weight: 450 kg
Pre-cutter
Front/back trimming unit
Top/bottom milling unit
Radial scraper unit: R=2 mm
Polishing unit
Compact dimensions, ideal for a small workshop
