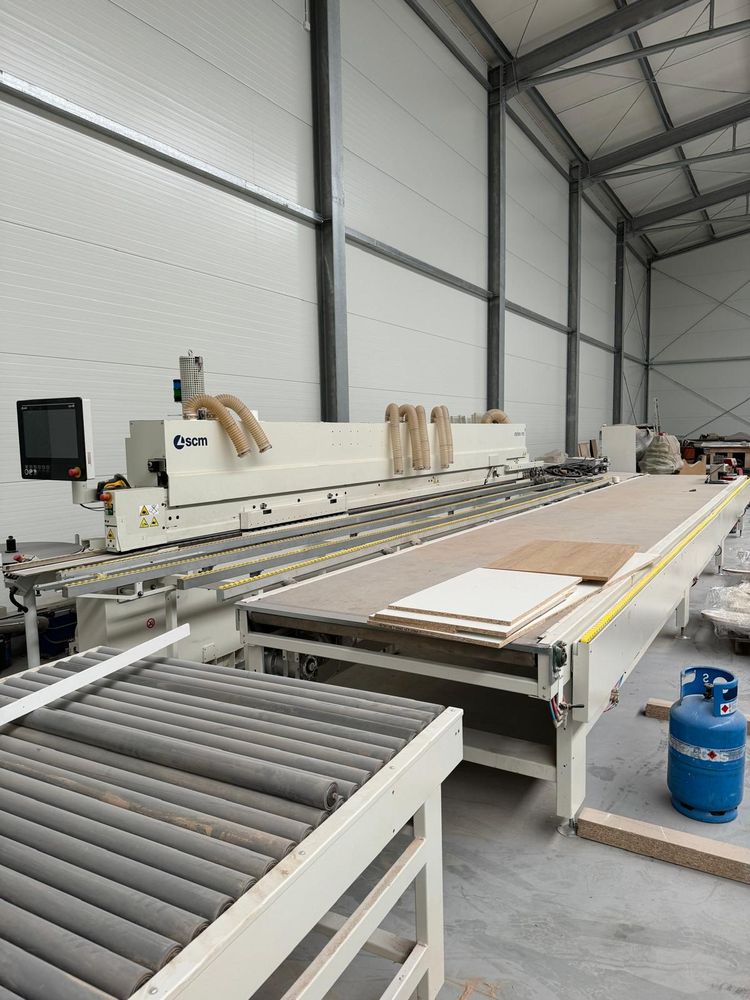

SCM Stefani md

EDGE BANDING WITH SOLID WOOD UP TO 15 MM (22 MM ON REQUEST): SIMPLE AND FUNCTIONAL USE EVEN OF LARGE DIMENSIONED SOLID WOOD EDGES
“SGP”GLUEPOT:USE OF EVA AND PUR GLUESFOR A PERFECT JOINT LINE
VERSATILITY AND HIGH PRODUCTIVITY THANKS TO THEAUTOMATIC MACHINING UNITS AND THE WORKING SPEED UP TO 25 M/MIN
”STARTOUCH” CONTROLSYSTEM

Main features:
- 12”Touch-Screen colour display
- Operating groups and their status (on/off)are graphically shown
- Graphic simulation of machining which will be carried out on each panel side
no. 100 customisable working programs, 6 of them with keys for the rapid selection of the preferred ones (“preferred” function)
European safety regulations(CE norms)

General Data:
- Variable track feed speed: 10 - 25 m/min
- Panel Thickness: 10 - 60 mm
- Thickness of edges in strips *(with option"kit for solid wood up to 22mm”): 0,3-15(22) mm
- Thickness of rolled edges: 0,3-3 mm
- Max .section of rolled edges: 135 mm
- Width of the magazine for edge in strips: 195 mm
- Max. working speed with solid wood>6mm: 12 m/min
- Coil-holder plate diameter: 780 mm
- Exceeding material to the panel thickness: 2+3 mm
- Distance between two successive panels-10m/min: 600 mm
- Distance between two successive panels-25/min: 700 mm
- Min. panel length(100nnmin.width): 140 mm
- Min.length of edge in rolls: 170 mm
- Min.length of edge in strips: 250 mm
Min.panel width(210mmmin.length)
- with panel thickness up to 40mm: 55 mm
- with panel thickness from 41to 60mm: 80 mm
- with edge thickness over 3mm: 80 mm
- Opening for panel support roller: 600 mm
- Work table height: 950-980 mm

Operating Units:
RT-E premilling unit
- 2 high frequency motors
- max. thickness removal: 3 mm
- Motors power: 4 kW
- Tool diameter: 100 mm
- Tool rotating speed: 9000 rpm

VC-S4.1/QMS-P”gluing unit
SGP gluepot
- heating time from environment T°:
