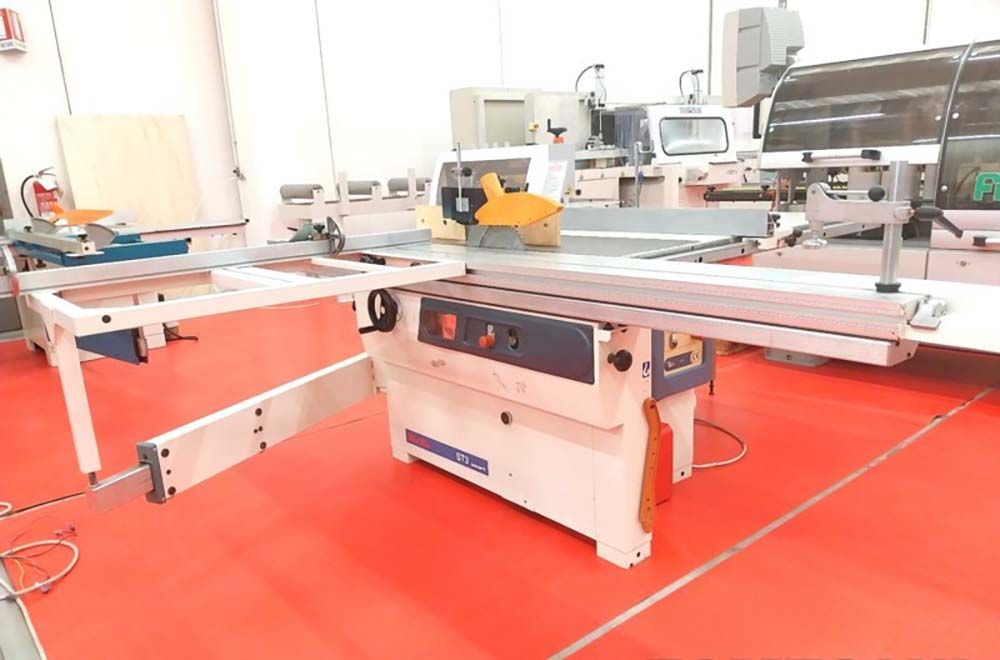

SCM MINIMAX ST 3 SMART

Combined saw-spindle moulder with squaring carriage, tilting blade and scoring unit,
for carpentry, furniture, window frames , doors, panels, composite materials and various - CE Standard

Technical data:
Aluminium sliding carriage mm 2800
Squaring frame mm 1100 x 670 complete with telescopic guide with 2 reversible stops Workpiece clamping arm - Telescopic support bracket
Worktable height mm 900

Saw unit:
Max blade diameter mm 315 F30
Rotation speed 4000 rpm
Max cutting width at guide with added table mm 1270
Saw blade inclination 90°-45°
Max cutting height mm 94 at 90°
Max cutting height mm 65 at 45°
Motor Kw 3

Scoring unit:
Diameter mm 80 F20
Rotation speed 8000 rpm

Spindle moulder:
Shaft diameter mm 30
Useful shaft length mm 125
Shaft rotation speed rpm 1400/3500/6000/8000
Motor Kw 3

Suction inlet diameter mm 120
Overall dimensions of assembled machine: mm 3100 x 3500 x 1300 h
Overall dimensions for transport mm 3100 x 1800 x 1400 h
Weight kg 460
