SCM Minimax ST 5ES

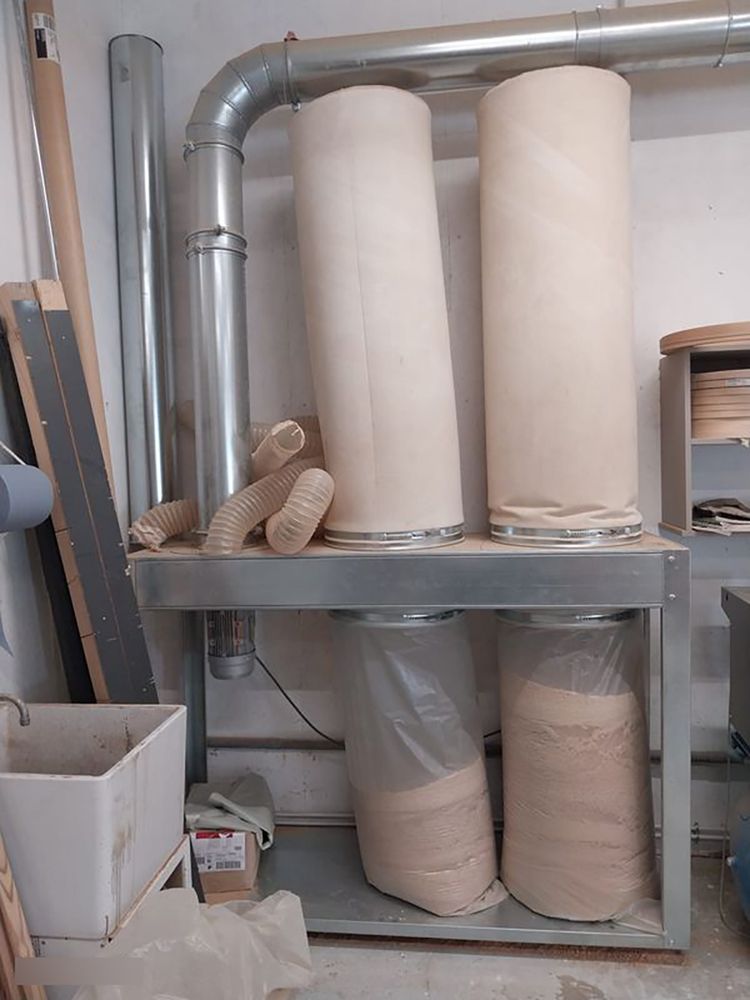

Router/saw combination (CE version, 30mm spindle) + 2-bag mobile vacuum cleaner
Ø500 x H.1500mm, 2500m3/h (Ø200mm suction inlet)
Type: Router/saw combination
Arbor: Ø 30 M-FILES

Robust and versatile workshop machine, ideal for carpentry and cabinetmaking work.
Condition: Very good working order, viewable on site.
Commissioned in May 2020.

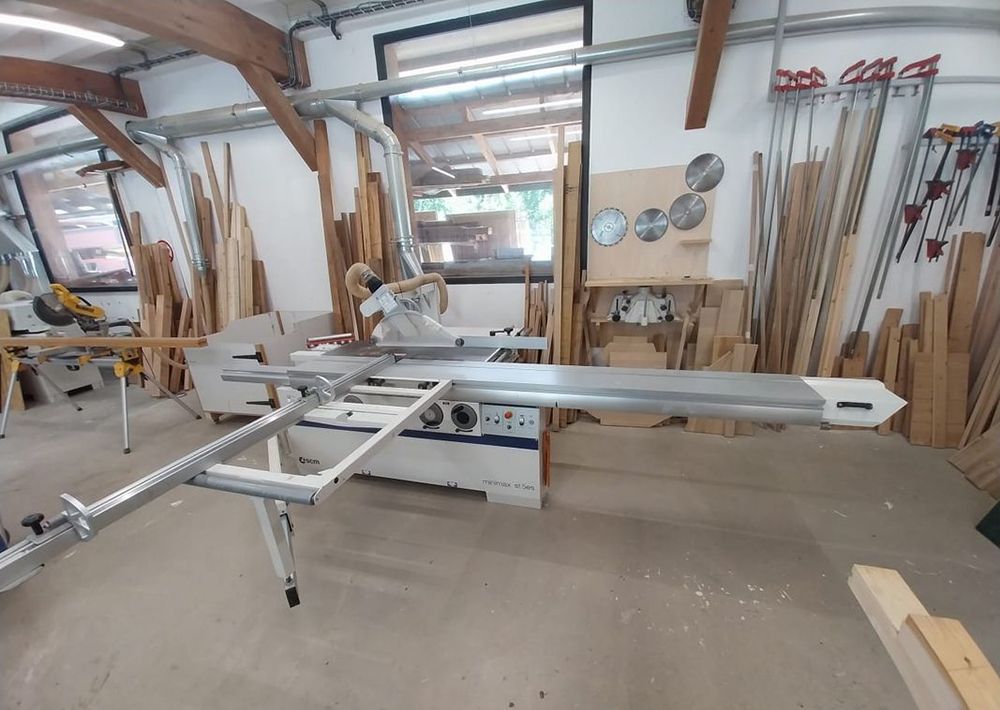

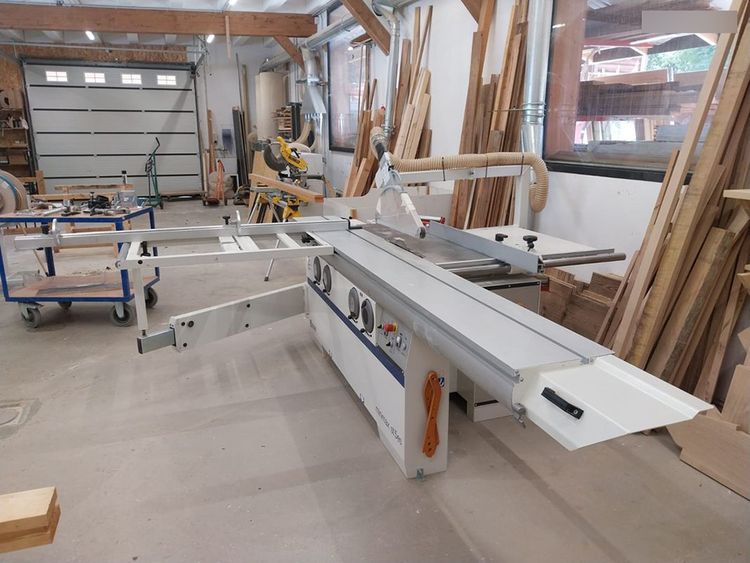

SCM Minimax ST 5ES combination router/saw (CE version, 30 mm spindle)

Circular saw:
- Cast iron saw-spindle table dimensions [mm] 1380 x 465
- Blade tilt range 90° ÷ 45°
- Maximum saw blade diameter with scoring blade mounted [mm] 350
- Maximum blade extension at 90°/45° [mm] 117/84 -
- Scoring blade diameter [mm] 120
- Maximum squaring capacity (standard) [mm] 2250
- Cutting width at the rip fence (standard) [mm] 900

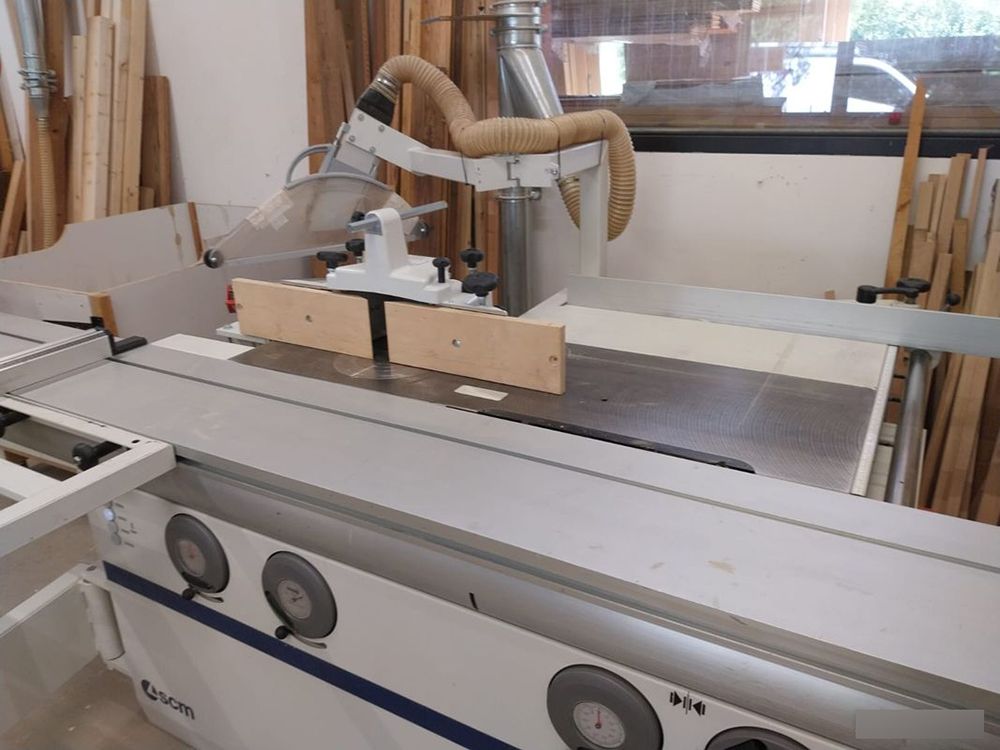

Router:
- Maximum useful spindle length [mm] 125*
- Spindle speeds (at 50 Hz) [rpm] 3500/6000/8000/10,000
- Maximum diameter of the profiling tool [mm] 240
- Maximum diameter of the tool below the table at 90° [mm] 240

Other technical specifications:
- Three-phase motors 5kW (6.6HP) 50Hz - 6kW (8HP) 60Hz
- Three-phase motors (scoring cutter) S1 0.55kW 0.75HP 50Hz (0.65kW 0.9HP 60Hz)
- Extraction hood diameter [mm] 120

Rotating spindle available in the following diameters: 30-32-35-40-50 mm
Version with maximum squaring stroke 3200 mm 1 Tilting spindle moulder 90° ÷ 45° 1 Electrical pre-installation and removable support for the feeder 1 2 three-phase motors 7kW (9.5HP) 50Hz

Standard equipment:
Cast iron saw unit, with dovetail guide lifting and tilting on 2 high-rigidity side sections,
complete with scoring saw with independent motor and adjustment from outside the machine
Anodized aluminum sliding carriage (dimensions 360 x 2250 mm) with sliding system
on high-precision hardened steel guides, secured by rivets

Squaring frame (dimensions 1200 x 650 mm) equipped with:
- Telescopic guide with 2 reversible stops and metric scale facing the operator
- Eccentric pressure device
- Telescopic pivoting support
- Idler roller for easy loading/unloading of the panel. Saw guide for parallel cutting equipped with:
- "High rigidity" cast iron support
- Micrometric adjustment and locking with eccentric pressure device
- Round section sliding bar, diameter 45 mm, made of ground steel. Rotation reversal with the router
Router speed indicator with illuminated LED light
Adjustable router guide, with memory for easy repositioning and digital indicators for micrometric adjustments
Unit adjustment wheels located on the front of the machine. Digital indicators for blade tilt, planer table height, and router spindle position (1/10 mm)
