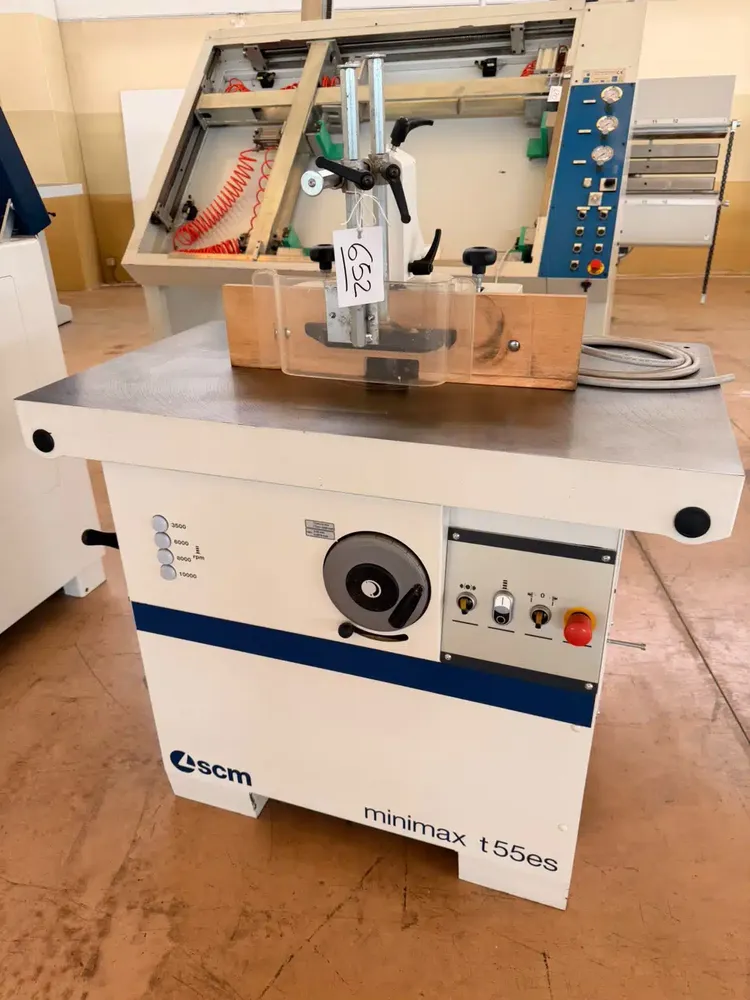

SCM Minimax T 55es

Complete with:
– self-braking motor
– spindle moulder shaft protection for shaping

Technical features :
– standard worktop dimensions mm 1080x655x80
– spindle rotation speed at 50 Hz rpm 3500/6000/8000/10000
– useful length of the spindle moulder shaft mm 125 (70 if 3/4′′)
– max. diameter of the profiling tool (standard) mm 210
– max. diameter of the tool retracting under the table at 90° mm 240
– three-phase motor HP 5.5 kW 4 Hz 50
– suction hoods diameter 120 mm
– weight 450 kg
– spindle moulder available in the following diameters: 30 – 35 – 40 – 50 mm, 3/4′′ – 1′′ – 1 1/4′′

Standard equipment :
– ​​Spindle moulder group adjustment handwheels positioned on the front of the machine
– Spindle moulder rotation reversal
– Spindle moulder speed display with bright LEDs
– Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers
