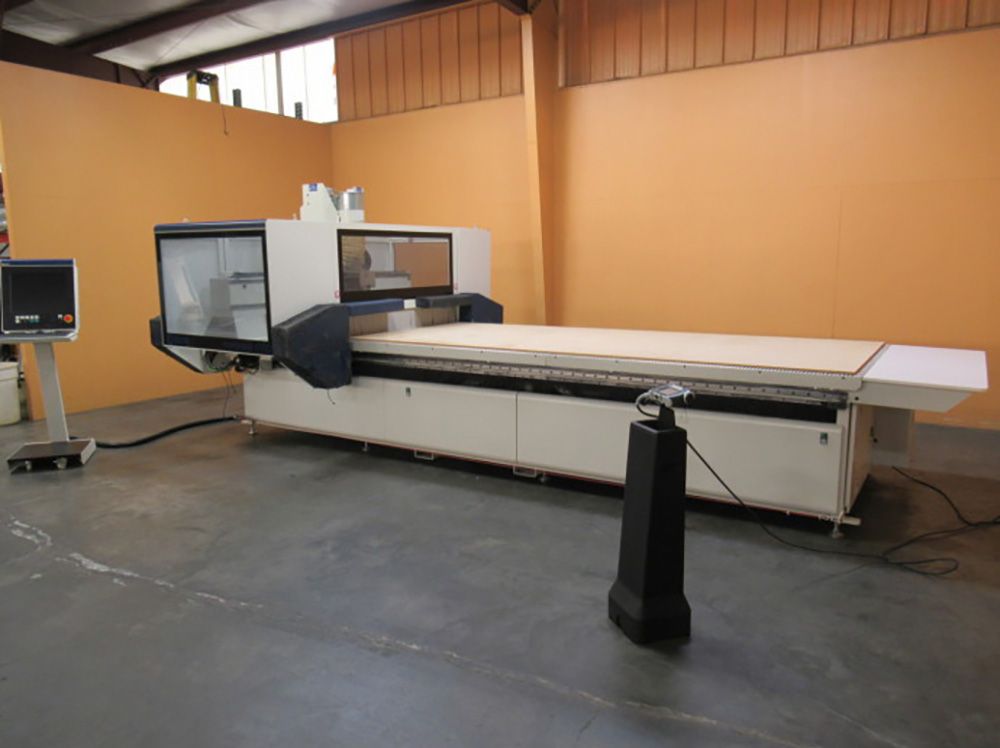

Morbidelli, SCM N100 C+

Used CNC Router
5' x 12' work table
13 HP (S6) air cooled electrospindle with HSK F 63 quick release tool holder
1,500 to 24,000 RPM inverter controlled spindle speed
Aluminum solid work table that can nest full sheets or be used for routing smaller components
14-Position tool changer mounted to side of machine
(12) Vertical drills: (7) in X axis and (5) in Y axis
X/Y maximum positioning speeds is 35 meters/min (115 feet/min)
Z axis stroke
250 mm (9.84")
Maximum panel passage
150 mm (5.90")
(2) 300 CMH vacuum pumps
Mobile console with 17" LCD display with Windows 7 operating system
XILOG PLUS Operator Interface and Xilog Maestro Cad Cam free form software with labeling
7" color universal remote control pendant allows for the effective management of all machine functions
from movement of controlled axes in manual jog mode to loading and execution of a program
Fitted with a USB port which allows for a quick load and setup of new programs
Air-Conditioned electrical cabinet
Safety bumpers on both sides of the mobile unit allows for safe movement while saving space by eliminating caging around the machine
Electronic tool detecting length (touch probe) allows for detecting tool length without running a test program
Dust Collection: (1) 200 mm (7.87") on router (1570 cfm)
Operating air pressure with 3/4" ID hose
7 ATM (102 psi)
Autotransformer allows choice of 208/230 or 460 volt 3 phase operation
