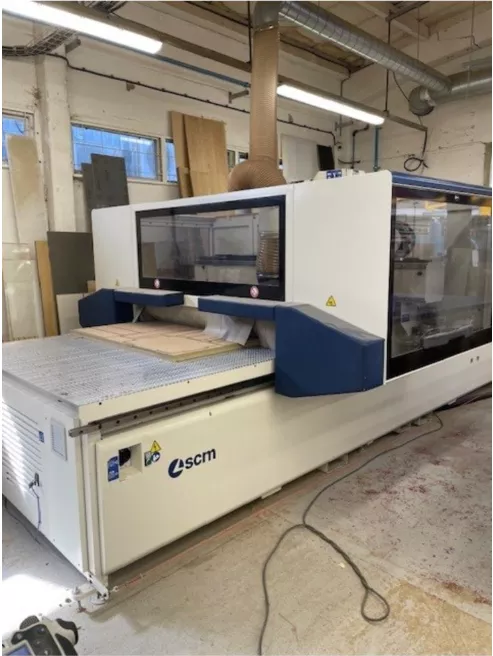

SCM Morbidelli N100

Flat Bed CNC Router
Available immediately.
Machine type: Flat-bed CNC nesting machining centre for wood, plastics & non-ferrous metals
Control console: “Eye-M” industrial PC with 21.5″ Full HD multi-touch display, mobile on castors
Programming software: Maestro Suite CAD/CAM (Windows®)

Description:
Axes & Working Area
Parameter Specification
Vectorial speed (X–Y axes) 35 m/min
Z-axis stroke 250 mm
Z-axis panel passage 150 mm
Working table (X × Y) 3 650 × 1 550 mm
Mobile gantry structure Minimizes vibration, allows high speeds with precision

Routing Unit:
Motor power (max.): 15 kW (21 HP)
Max spindle speed: 24 000 rpm
Tool-changer capacity: up to 20 tools (depending on version)
Blade-grooving unit: integrated blade dia. 125 mm, max 10 000 rpm

Drilling Unit:
Vertical spindles: up to 12 independent (RO.AX “Rotoaxial” zero-play technology)
Horizontal spindles: up to 6 independent
Spindle speed (drilling): up to 8 000 rpm

Vacuum & Exhaust:
Vacuum table: H.E. “High Efficiency” magnetic-lock MPS pods; optional pressure rollers for small parts
Exhaust air consumption: 5 300 m³/h
Exhaust outlet diameter: 250 mm

Safety & Automation:
PRO-SPACE protections: open loading zone on all sides, minimal footprint
Bumpers & guards: CE-compliant safety bumpers lock the machine on contact
Loading/unloading: optional lift-table + push-off belt with photocell detection; panel-cleaning jets
