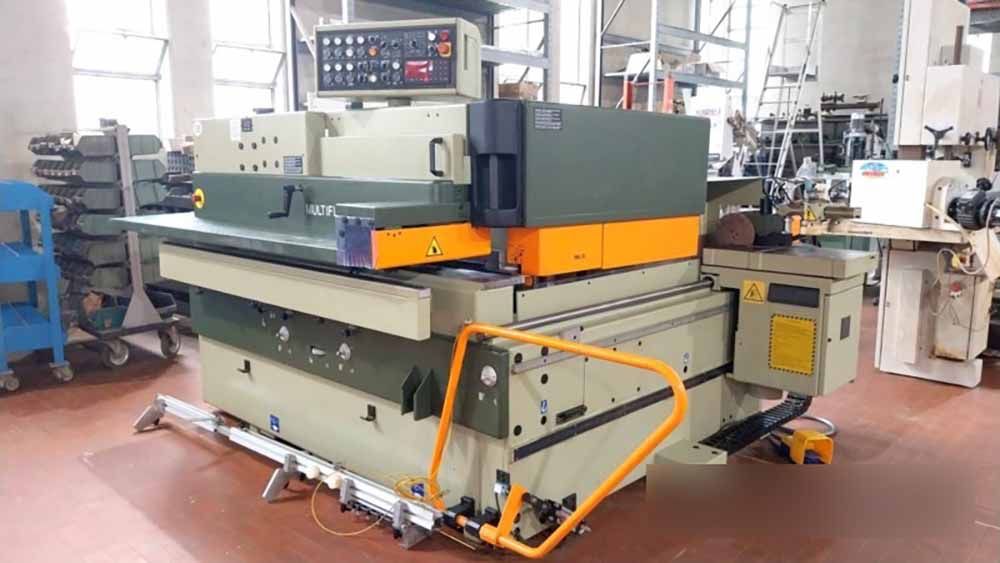

SCM MULTIFLEX

Automatic Working center for Window Frames (Tenoning / Profiling / Squaring) - CE Standard
Max working length mm 2800
Min/max workpiece height mm 30/140

Tenoning unit
Automatic carriage with rotating anti-splinter device - Telescopic tilting guide for execution of inclined tenons
End cutting saw diameter mm 400 - Motor Hp 4
Tenoning spindle max length mm 320 - Motor Hp 10
Spindle diameter mm 50
Max tool diameter mm 350
Exhaust outlet diameter of tenoning unit n° 2 x 120 mm

Profiling unit
Feed speed mt/min 1,5 - 16 - Motor Hp 1

1° Profiling spindle and time intervention - Length mm 160
Spindle diameter mm 50
Motor Hp 7,5
Max tool diameter mm 220
Exhaust outlet diameter mm 150

2° Profile spindle - Length mm 320
Diameter mm 50
Motor Hp 7,5
Max tool diameter mm 220
Exhaust outlet diameter mm 150

Glaze bead recovery unit
Motor Hp 3 - Rev/min 5000
Max tool diameter mm 220 F25
Exhaust outlet diameter mm 50

Electronic programmer for spindle positioning
Memory capacity for up to 100 different work programs

Compressed air 7 bar
Overall dimensions for transport mm 2200 x 3300 x 1950 h
Weight kg 2500
