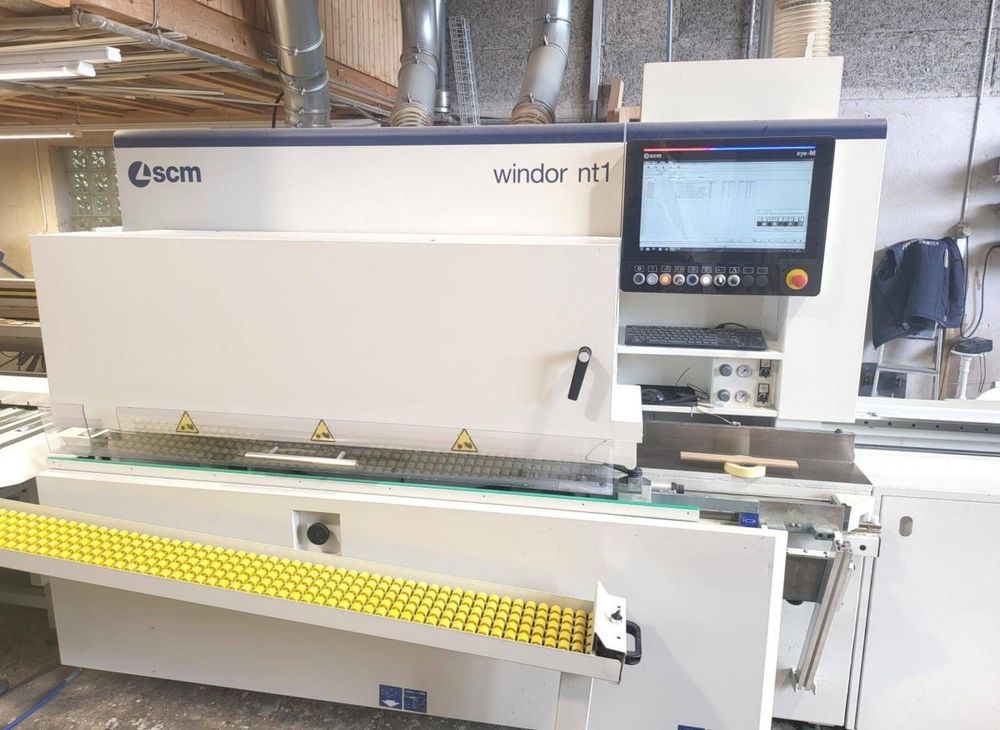

SCM Windor NT 1

Angular system for window and door production
SCM angular system with CNC control for one-sided transverse and longitudinal processing of window and door edges

Technical manufacturer description:
> Workpiece length max: 3,000 mm
> Workpiece thickness max: 140 mm
> Number of slotting spindles: 1 pc.
> Number of profile spindles: 2 pcs.
> Drilling unit
> Separate gear grooving spindle
> Cut out glazing bead
> Length of slotting spindle: 320 mm
> Length of profile spindle: 320 mm
> Spindle diameter: 50 mm
> Stepless spindle stroke
> Radial spindle adjustment: pneumatic
> Controlled length stop: electronic
> Slanted window
> Angle stop, mitre difference compensation
> Equipped for rebating
> Rebating splinter protection: synchronised spindle
> Workpiece return: inclined roller conveyor
> Main motor: 11 kW
> Tool clamping system: HSK-85S
> SCM T-Set
> Window tool set: IV 54, IV 64, IV 74, IV 84, wood-aluminium
> Feed rate max: 10 m/min
> Infinitely variable feed rate
> Control: PC control
> SCM Rotaten
> SCM Duo unit
> Profile splitting
> SCM Jolly
> SCM Optima 1
> Control system: SCM Control 100 PC
> Conformity labelling: CE mark
