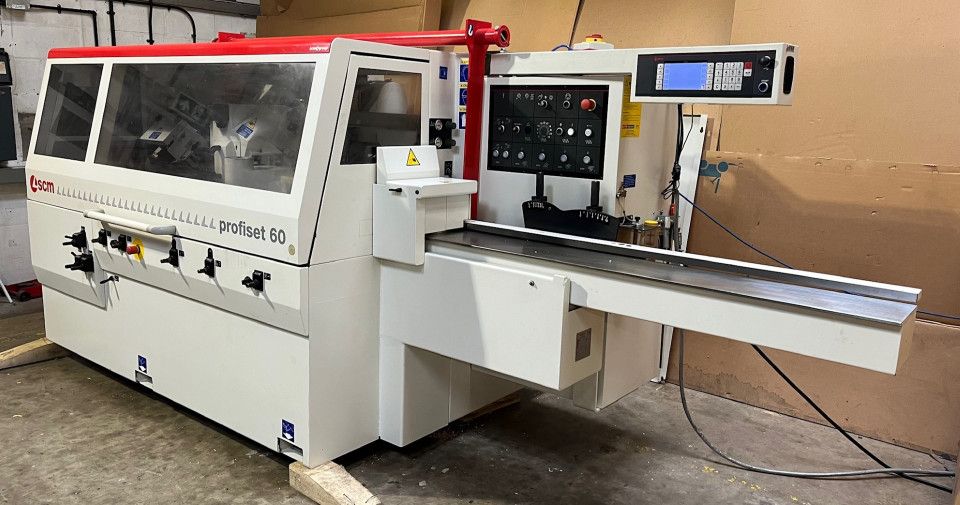

SCM PROFISET 60EP
EUROPE (Western and Northern)
5 Head + Universal Throughfeed Moulder
Min/max working width (finished section) mm 25
Min/max working height (finished section) mm 6/120
Feed speed m/min 5÷25
Minimum length of single component mm 635 Spindles diameter mm 40
Min/max cutterheads diam. planer group mm 120÷140
Min/max cutterheads diam.
vertical spindles length mm 100÷180
Min/max cutterheads diam.on top horizontal spindle mm 125
Min/max cutterheads diam. on bottom horizontal spindle mm 100÷180
Min/max cutterheads diam. universal spindle mm 100÷180
Vertical spindles length mm 140
Horizontal spindles length mm 250
Feed rollers diameter mm 120
Infeed table length mm 2000
Rapid adjustment of infeed table and fence mm 10
