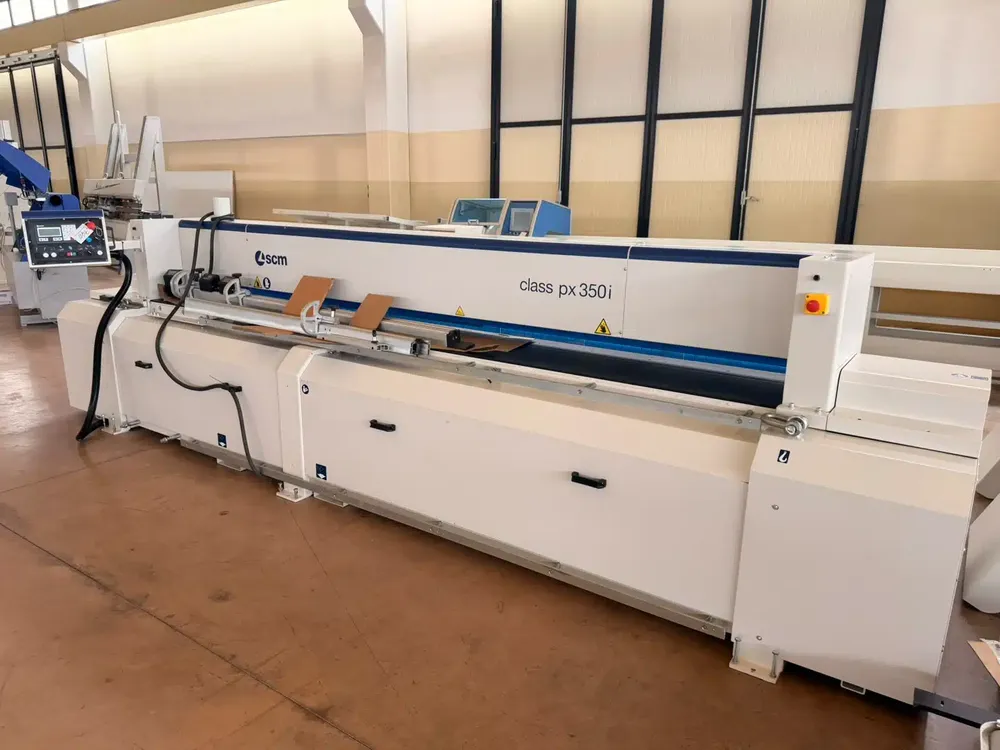

SCM Px350i

Circular saw with mobile carriage and blade tiltable up to 46° for safe operation with a working space reduced by up to 50% compared to a traditional squaring machine.
Optimal finishing with the new saw unit, featuring a rigid structure that allows for perfect
and extremely easy cutting of veneered or solid wood panels, both at 90° and tilted up to 46°.
Quick and easy movements are programmed with the "Ready" control located on the cabinet.
Immediate positioning is ensured thanks to the motorized and programmable rear stop, which ensures fast and precise positioning of the piece.

Maximum squaring capacity 2600 mm 3200 mm 3800 mm
Blade tilt 0÷46° mm
Maximum saw blade diameter (cutting) 350 mm
Maximum saw blade diameter (scoring and cutting) 300 mm
Maximum projection Saw blade (D350) from table at 90°/45° 105/72 mm
Max. saw blade projection (D300) from table at 90°/45° 80/50 mm
Blade rotation speed 4000 rpm
Rear guide cutting width 1300 mm
Other technical specifications
Three-phase motor 5.5 kW 50 Hz (5.5 kW 60 Hz)
Extraction hood diameter 120 mm (1) – 100 mm (2)
Overall dimensions mm: L 3859 W 3196 H 1368 L 4459 W 3196 H 1368 L 5059 W 3196 H 1368
