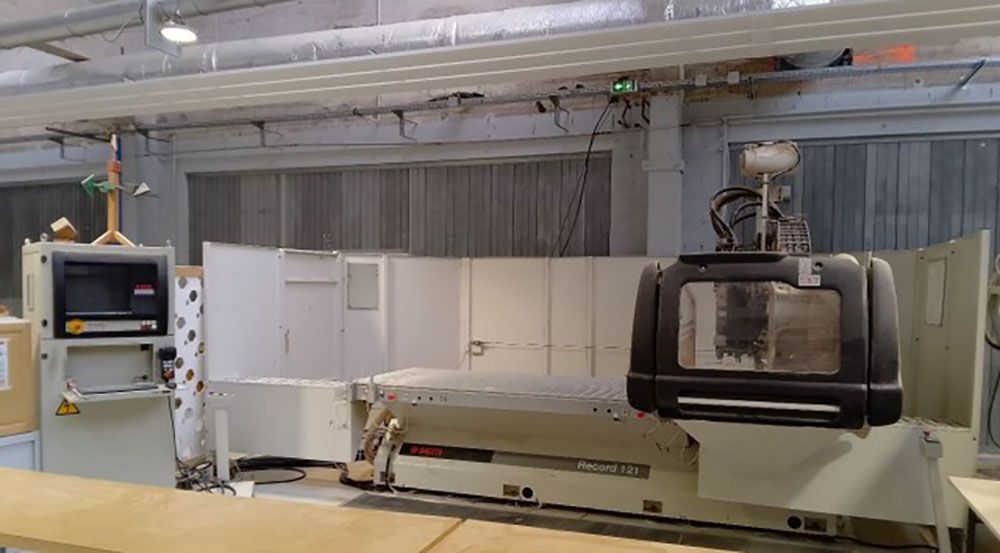

SCM RECORD 121 3 AXIS

3-AXIS CNC MILLING AND DRILLING WITH HORIZONTAL SPINDLES
Technical Specifications:
X-axis travel: 2850 mm
Y-axis travel: 1600 mm
Z-axis travel: 250 mm
Workpiece height: 250 mm
Tool magazine for 12 tools on
Tapers
Drilling unit: 5 vertical spindles, 2 horizontal spindles
Work surface: Profiled aluminum table
Worktable length: 2600 mm
Worktable width: 1080 mm
Work on suction cups, modulsets, or tables.
Control panel: Windows XP Pro PC, Xilog 3 and ROUTELINK software.
Easy CAD connection with SolidWorks PostPro or other compatible systems.
Type 0102 remote control. 2 control stations.
Rietschle 250/300m3/h vacuum pump. New blades.
Voltage: 380V three-phase. Power: 15 kW. Motor: 10 HP.
Overall dimensions: Length: 6100 mm. Width: 4500 mm. Height: 2350 mm. Weight: 3500 kg.
