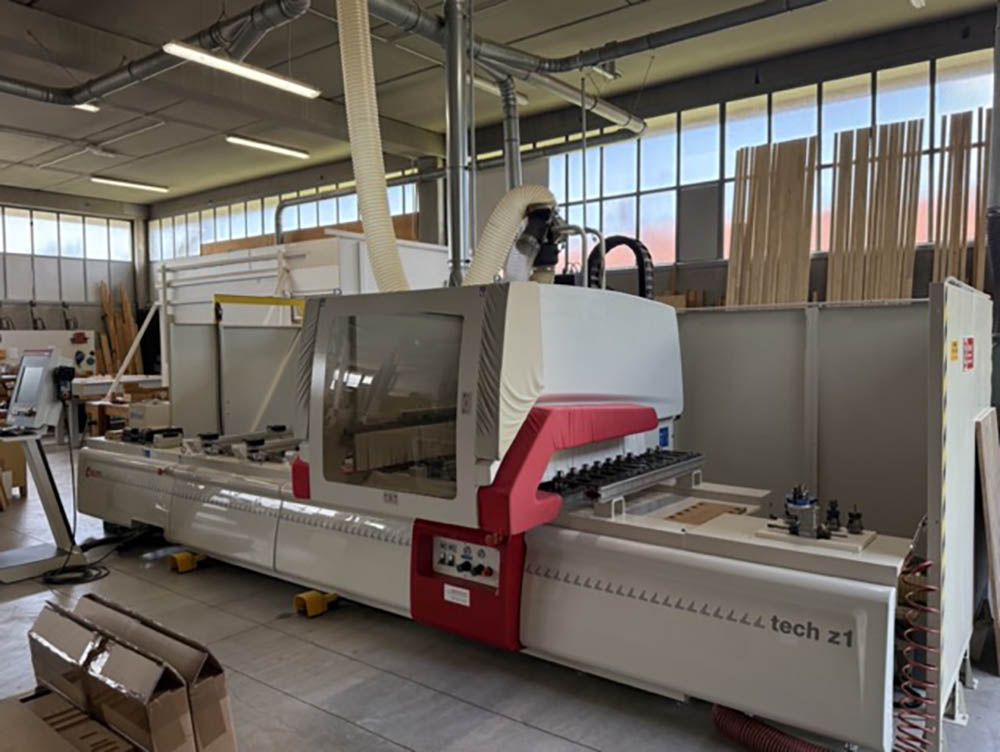

SCM Tech Z1
Ref :
2748638-15-GO
Condition :
Used
Manufacturer :
SCM
Model :
Tech Z1
Nb Of Axis :
-
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Motor power kW: 9,5
Net weight kg: 2581
Axes
Working area along X-Y-Z axes mm 3050 - 1250 - 180
Panel length along Y axis mm 1550
Panel length (for alternated work process) mm 1390
Vectorial speed X-Y axes m/min 35
Boring head
Vertical spindles up to No. rpm 12 (8X - 4Y) 6000
Horizontal spindles up to No. rpm 6 (4X - 2Y) 6000
Integrated blade in X Ø mm - rpm 120 - 7500
Electrospindle
Std motor power (S6) (B-C versions) kW (Hp) 9,5 (13)
Max. speed rpm 24000
Tool changer on the carriage in X (base) places 4 (10) Installation
