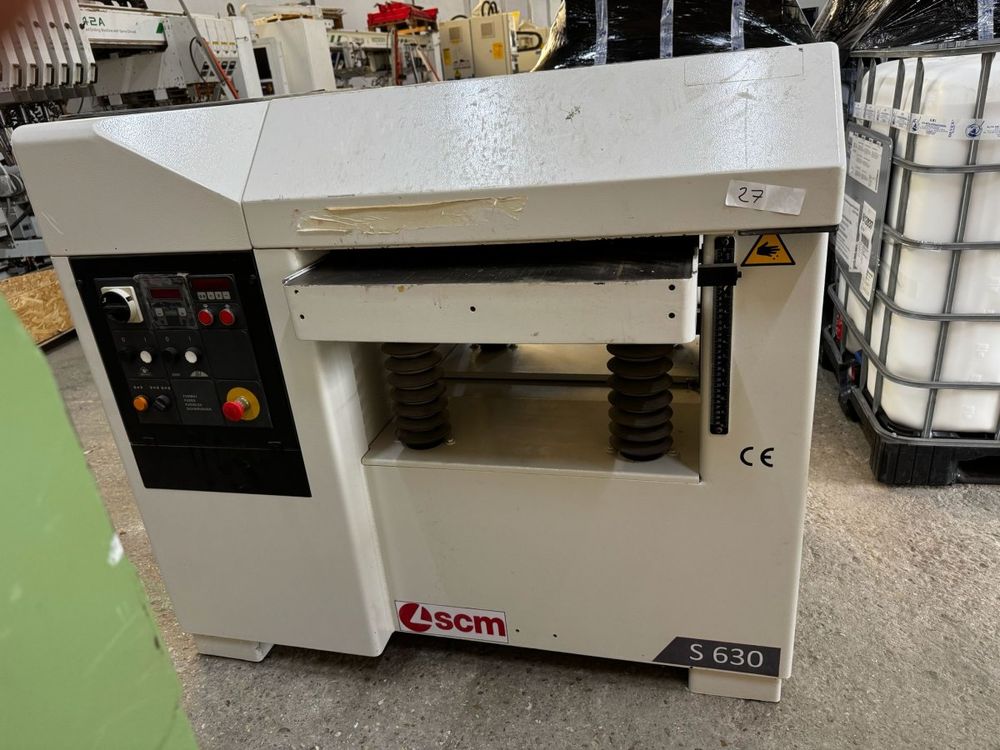

SCM S630 E

Planer
Condition: Used

Technical Specifications:
Planing Width: 630 mm
Working Thickness: 3.5 to 300 mm
Minimum Workpiece Length: 260 mm
Maximum Material Removal per Pass: 8 mm
Table Dimensions: 640 × 1000 mm
Variable Feed Rate: 4 to 20 m/min (Variable Speed/Inverter)
Height Adjustment: Motorized Drive with Screw Guide (depending on version)
Multiple Drive Rollers with Adjustable Pressure
Planing Unit
Arbor: Ø 120 mm
Number of Blades: 4
Spindle Speed: 4,500 rpm rpm
Shaft type: 4-iron TERSA
Main motor power: 7 kW (10 hp)
