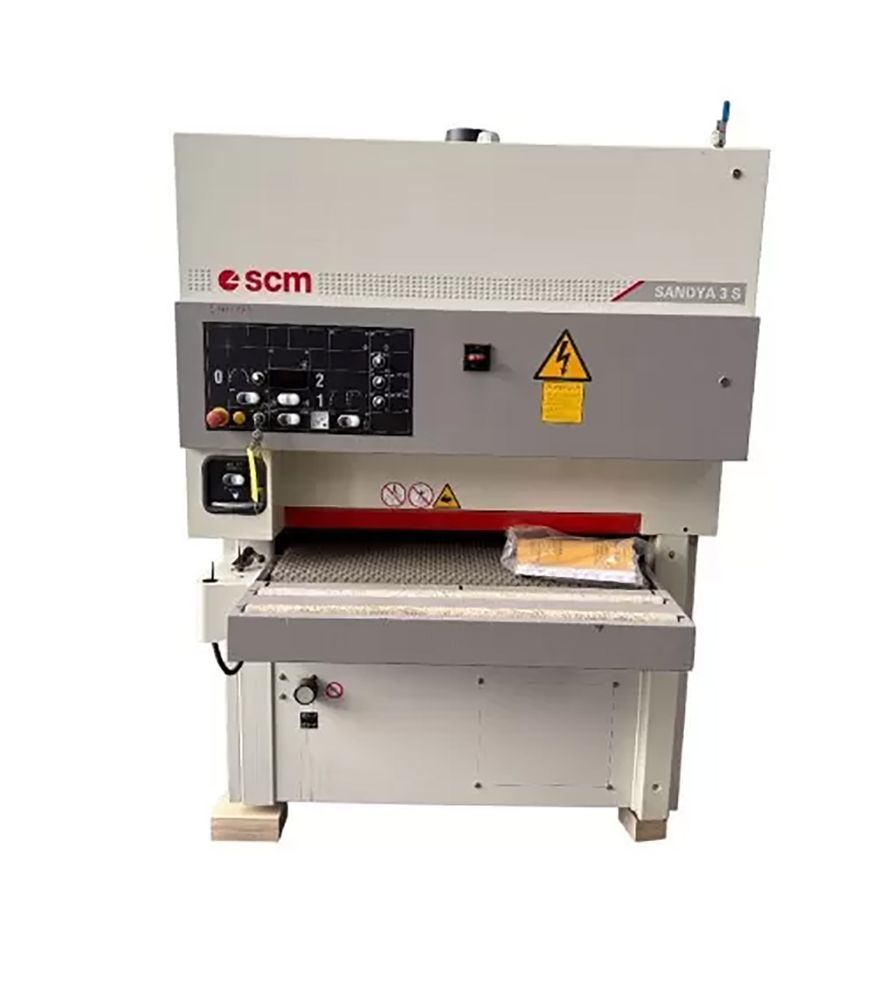

SCM SANDYA 3S

Wide Belt Calibrator Sander
MACHINING CAPABILITIES:
- Height (thickness): 4 to 170 mm
- Room width: max 950 mm
- Minimum part length: 340 mm
- Abrasive belt speed: 18 m/s
- Conveyor belt feed speed: 4.5 and 9 m/min
- Suitable belts: grit 80 to 1200, Dimensions: 970x1900 mm

MACHINE COMPONENTS:
- Tables with 2 rollers in front and behind
Table height from the floor: 900 mm
- Digital height display
- Automatic table positioning via sensor
1) Calibration
1st band on a 120 mm diameter cylinder made of rigid rubber
2) Calibration and sanding
2nd band on a Ø120 mm cylinder made of semi-rigid rubber and timed rigid sanding pad

MACHINE SPECIFICATIONS :
- General power supply: 400V, three-phase, 50Hz
- Automatic star-delta starter
- Installed power: 13 kW IN 25 A
- Ammeter for monitoring power consumption
Advance motor: 0.55kW
Belt drive motor: 11 kW
- Pneumatic tensioning, oscillation and retraction of the rollers
- Operating pressure: 6 bar
Estimated consumption: 40 Nl/min
- Suction, 2 upper vents Ø140 mm
Recommended flow rate: 2240 m³/h Velocity: 22 m/sec
- CE marking, Emergency stop, Lockable disconnect switch, Front/rear emergency stop buttons

NB: For your satisfaction, we remind you that the belts must be loosened when the machine is not in use
and that all humidity should be avoided, including the dew point inside your premises during the winter.
Transport dimensions: 1.70 x 1.40 x h.2.10 m
Weight: 1010 kg
