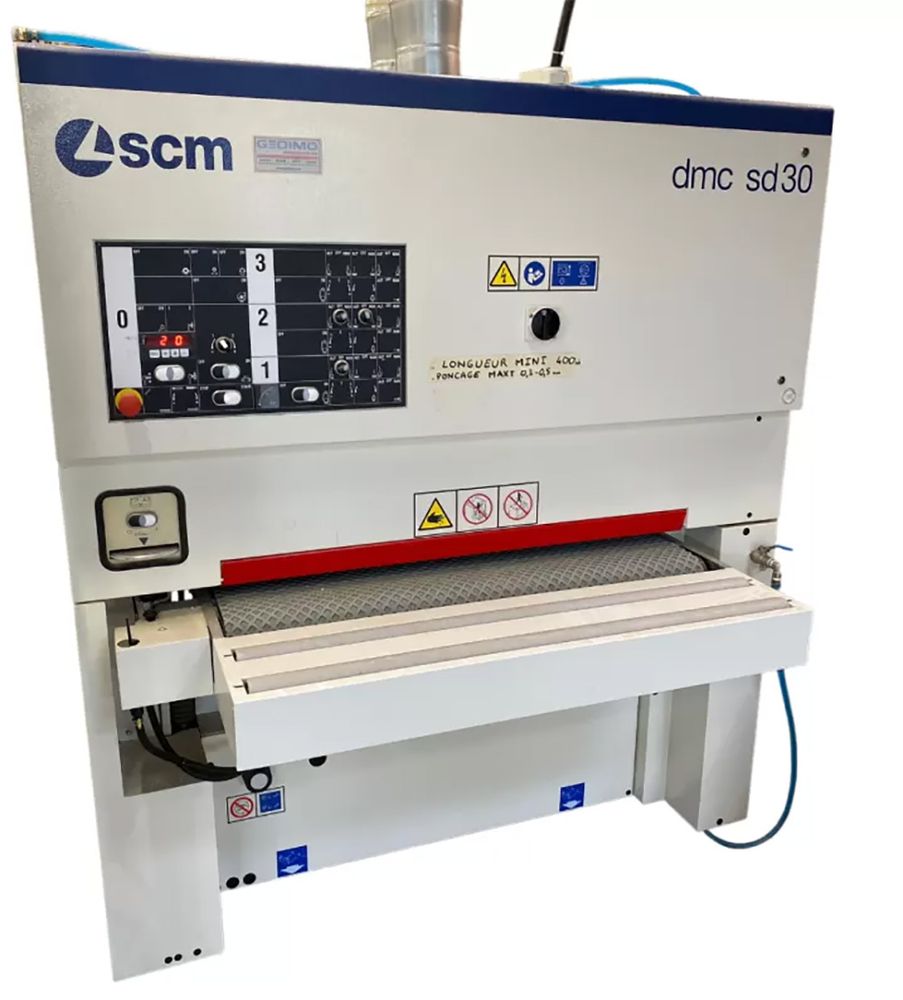

SCM SD30

Type: RCS 110
MACHINING CAPABILITIES:
- Height (thickness): 4 to 170 mm
- Room width: max 1100 mm
- Conveyor belt feed speed: 4.5 & 9 m/min
- Strips adapted to dimensions: 1115 x 1900 mm

MACHINE COMPOSITION: Version A
- Tables with 2 rollers in front and behind
- Digital height display
Automatic table positioning via touch probe
- 60 SH Rubber Mat
- Electronically controlled band oscillation
1) Calibration "R"
First band on grooved steel cylinder with pneumatic on/off (retractable) mechanism
2) Calibration and "CS" sanding
2nd band on a 140 mm diameter cylinder made of 45 SH semi-rigid rubber
Independent pneumatic on/off for the roller and rigid pad

MACHINE SPECIFICATIONS :
- General power supply: 400V, three-phase, 28A.
- Automatic star-delta starter
- Ammeter(s) for monitoring power consumption
2-speed feed motor: 0.3/0.55 kW
11 kW belt motor
- Pneumatic tensioning, oscillation and retraction of the rollers
Recommended flow rate: m³/h (x) Ideal air velocity 28 m/sec
- CE marking Emergency stop on the pass limiter
Lockable disconnect switch, front/rear emergency stop buttons
A safety device to prevent parts from returning during machining is included.
