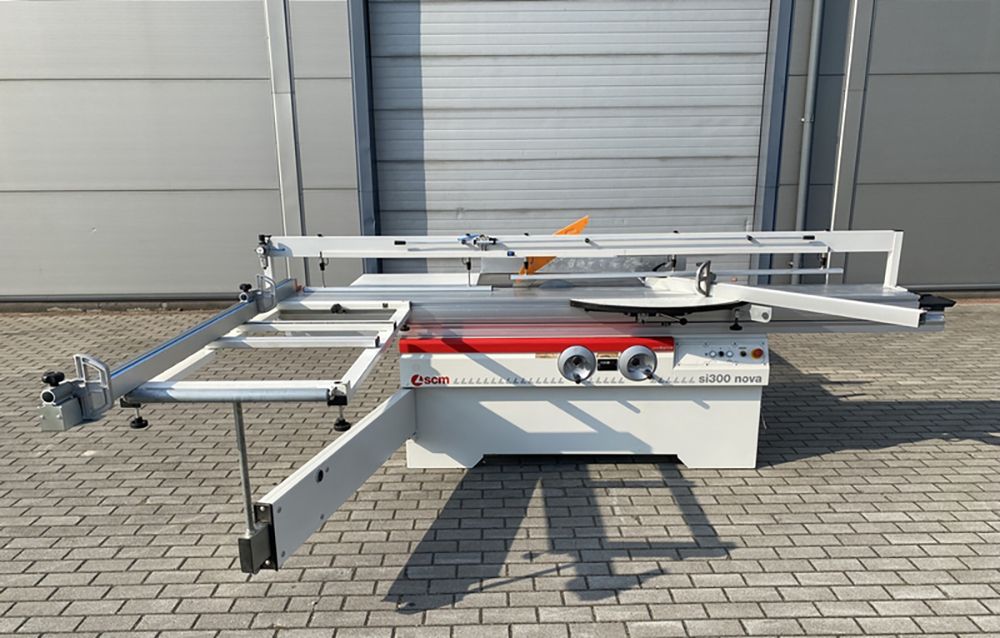

SCM SI 300 nova

Sliding table saw
TECHNICAL PARAMETERS:
- Max. Saw diameter: 315 mm
- Cutting length: 3200 mm
- Max cutting height: up to 100 mm
- Mitre cutting: 0-45 degrees
- Saw speed: 4000 rpm
- Motor power: 5 kW
- Scoring unit motor power: 0.9 kW
- Max rip cutting: 1270 mm
- Weight: 800 kg

MACHINE EQUIPMENT:
- Anodized aluminum carriage running on hardened steel guides mechanically mounted in the frame
- Manual saw blade lifting and tilting via knobs on the front of the machine and mechanical readout for the tilt angle
- Frame equipped with a movable aluminum straightedge
- Auxiliary table at the output
- Manually positioned rip fence with a metric scale reading on a 40 mm diameter steel guide
- Direct start of the main motor
- Scoring unit with a separate motor with external adjustment and stops for quick positioning
- Emergency stop switch on the front of the machine
- Emergency stop switches on the rip fence
- Overload protection
- Saw guard mounted on a wedge with a 60 mm diameter extraction port
- Automatic brake on the main motor
- Lockable main switch
- 110 Volt low voltage circuit
- CE declaration of conformity
