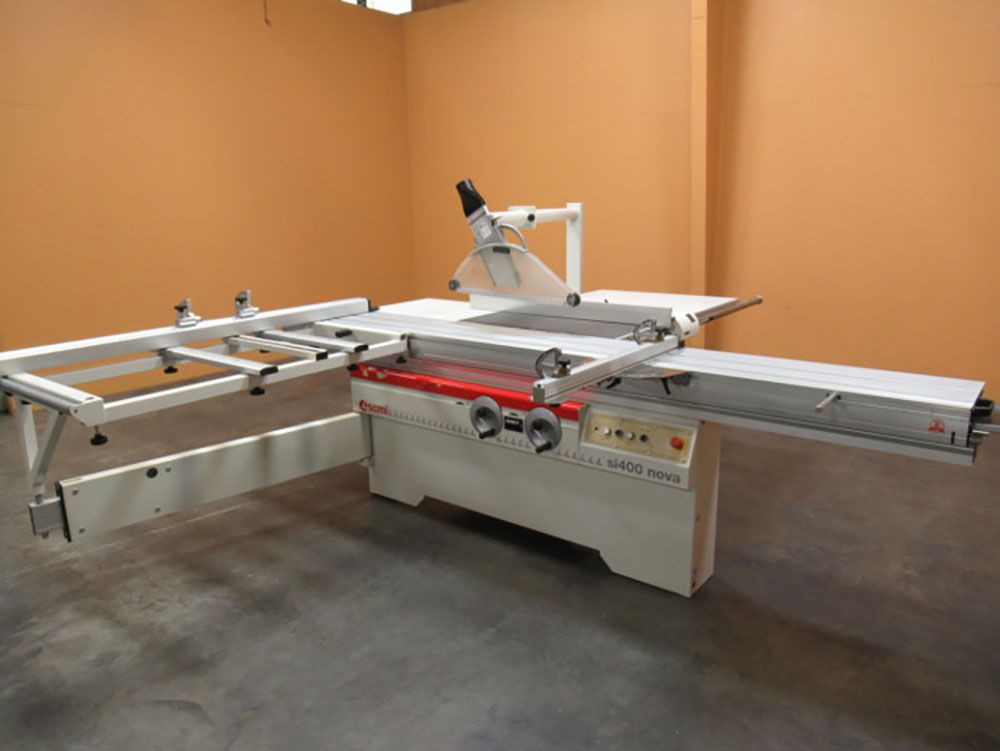

SCM SI400 Nova

Features:
Anodized aluminum sliding table with hardened steel guides
Self braking motor
Separate scoring motor
Tilting arbor from 0 to 45 degrees
Overhead mounted blade guard with dust outlet
Heavy industrial aluminum extrusion crosscut fence with flip stops
"EZ Dial" adjustable split scoring blade assembly simply turn the dial to adjust the width of the score.
This system eliminates the need for shims and is fully adjustable in 0.1mm increments
Electrical Requirements: 36 amps @ 230 volt 3-Phase
Dust Extraction: 1,100 CFM
Machine net weight: 2,200 lbs.

Specifications:
9 HP main motor
1 HP scoring motor
41" x 25" fixed table
126" max. length of crosscut with scoring
51" rip capacity
Main blade diameter 350 to 400 mm max with 1" arbor
Scoring blade diameter 120 mm with 3/4" arbor
Arbor speed main blade is 4,000 RPM and scoring blade is 8,500 RPM
Depth of cut at 0 deg. is 140 mm (5.5") and at 45 deg. is 97 mm(3.8")
