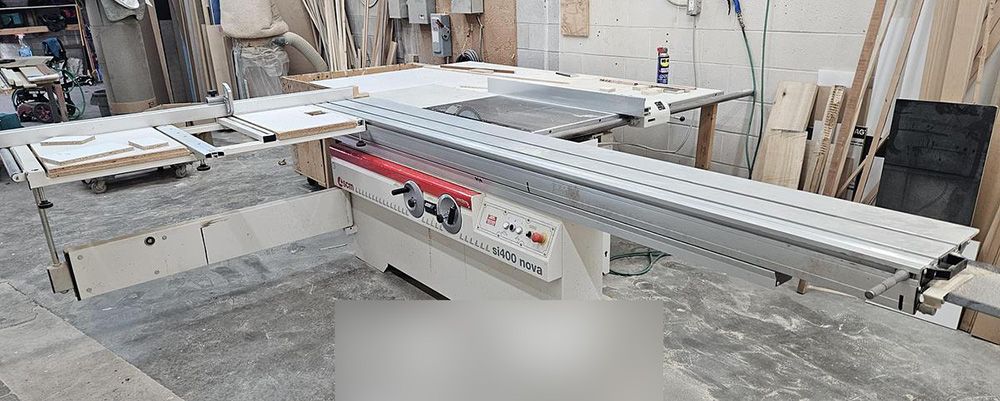

SCM SI400 nova

Used 10' sliding table saw
Main Features:
10’ sliding saw
9.5 HP main motor
Independent scoring blade motor
Anodized aluminum alloy carriage on hardened steel guides which are fixed on the carriage by means of mechanical bending system.
Lifting and tilting of blade by means of hand wheels that are both located on the front side of the machine for ease of use.
Overhead blade guard with incorporated dust extraction
Maximum blade size: 16”
Electrical requirements: 600 volt, 3 phase
Required footprint: 283” x 190”

Technical Features:
Max cutting height at 90° (mm): 140 with blade 400
Max cutting height at 45° (mm): 97 with blade 400
Blades lifting and tilt: manual
Main blade rotating speed (rpm): 3700
Scoring unit rotating speed (rpm): 8500
Saw unit motor power (S6 -40%) kW (HP) 50 Hz: 7 (9,5)
Scoring unit motor power (S6 -40%) kW (HP) 50 Hz: 0,9(1,2)

Squaring capacity:
w. 1600 mm carriage: n.a.
w. 3200 mm carriage: 3200 x 3200
Cutting width on parallel fence (mm): 1270
Exhaust outlet diameter
At the base (mm): 120
On overhead protection (mm): 80
On riving knife (mm): 60
Basic machine net weight (kg): 980
