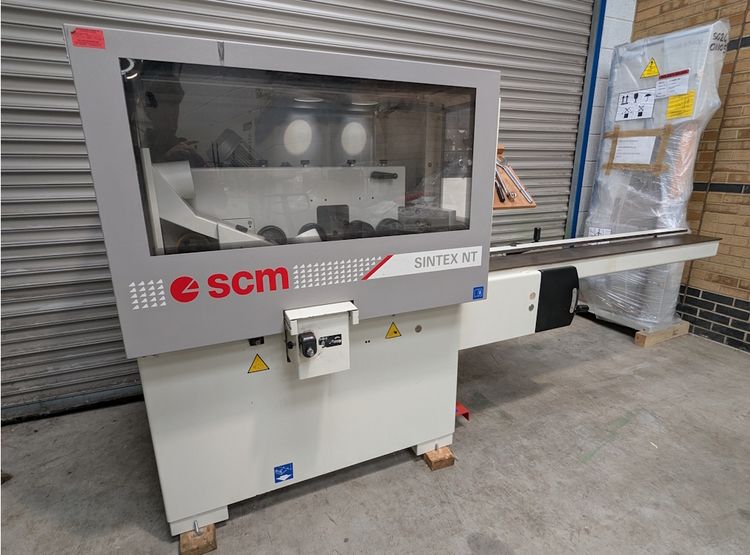

SCM Sintex NT

Used 4 Sided Planer
Min/Max. working width (finished section) – 23-180mm
Min/Max. working height (finished section) – 6-105mm
Min. length of single workpiece – 300mm
Feed speed – 6-12m/min
Spindle speed – 6,000rpm
Spindle diameter – 35mm
Min/max cutter diameter, horizontal spindles – 100mm
Min/max. cutter diam. vertical spindles – 100 – 124mm
Vertical spindle length – 120mm
Horizontal spindle length – 190mm
Horizontal spindle motor power – 10Hp (7,5kW)
Vertical spindle motor power – 10Hp (7,5kW)
Feed unit motor power – 1Hp (0,75kW)
Feed roller diameter – 120mm
Infeed table length – 2300mm
Infeed table and guide rapid adjustment – 10mm
Diameter of extractor outlet no. 1 – 150mm
Diameter of extractor outlet no. 2 – 120mm

Sintex NT /NTE can profile:12 mm with left-hand vertical spindles.
Reference engraver combined with the planing spindle: for perfect straightening.
Full safety enclosure to improve operator safety and to reduce dust and noise levels.
Quick-release feed unit positioned before the surface: makes workpiece infeed easier for the operator, especially with short workpieces.
2300 mm infeed table ensures perfect straightening even of long workpieces.
