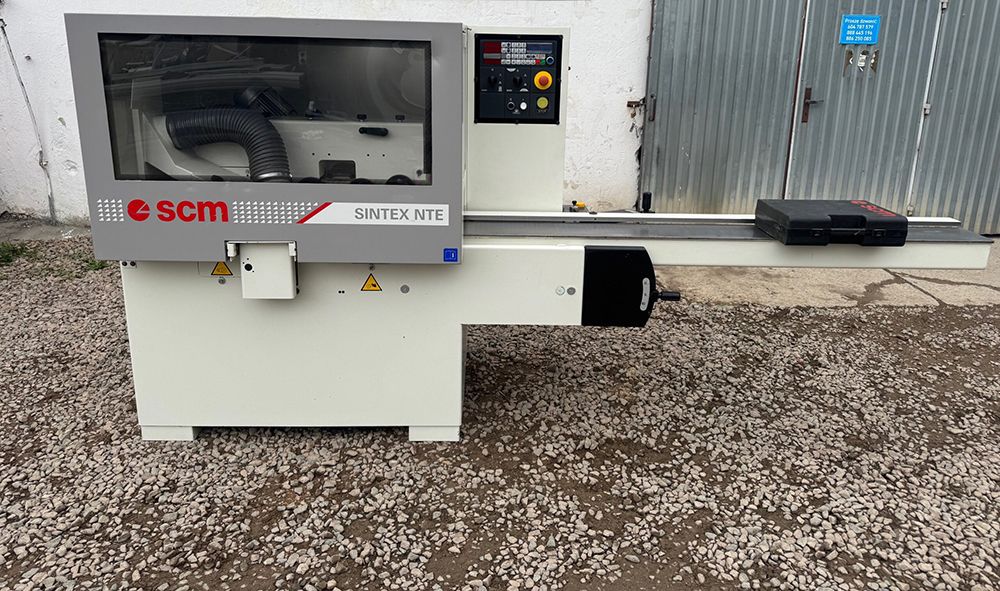

SCM Sintex NTE

Four-Sided Planer
4 Spindles
Maximum Planing Width: 180 mm
Minimum Planing Width: 23 mm
Maximum Planing Height: 105 mm
Minimum Planing Height: 6 mm
Minimum Planing Length: 300 mm
Electric Height and Width Adjustments
Feed Speed: 6-12 m/min
Worktop Lubrication Pump
Set of Heads
Head Dimensions: Min. 100 mm, Max. 124 mm
Vertical Head Height: 120 mm
Horizontal Head Height: 190 mm
Spindle Speed: 6000 rpm
Spindle Bore Diameter: 35 mm
Planing Height: 120 mm
Continuous Feed Adjustment: 3-21 m/min
Gimbal Feed
Electric Raising and Lowering
Set of Heads
Head Diameter: 120 mm
Spindle diameter: 40 mm
Weight: 900 kg
European CE certification
Operational and maintenance documentation
