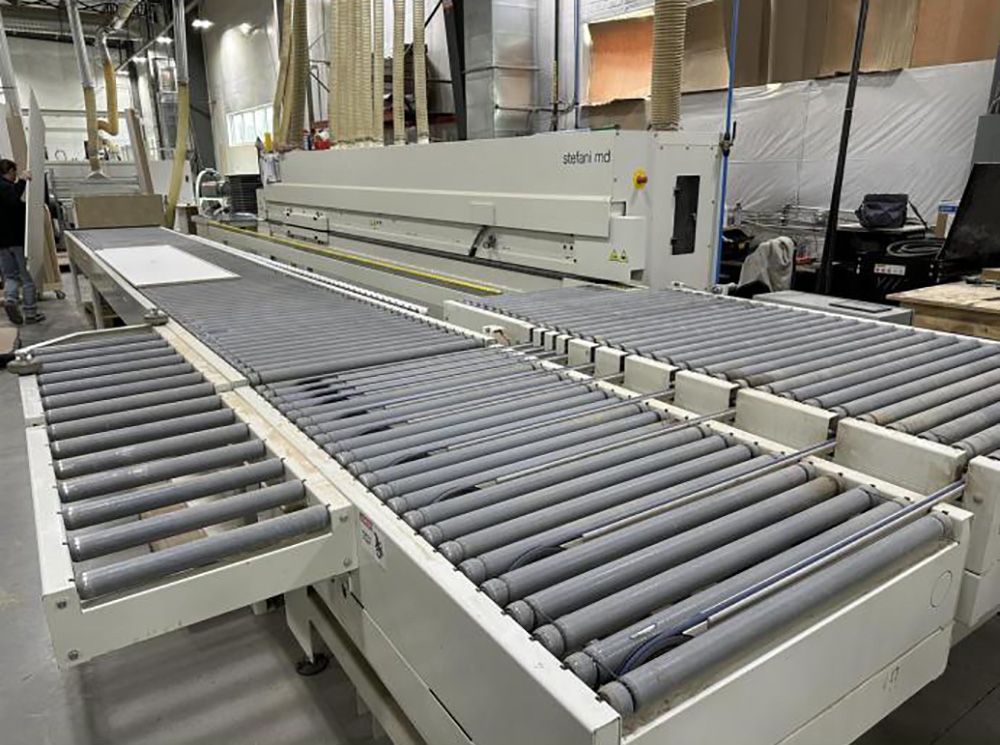

SCM Stefani MD FRT

Edgebander with ERC Panel Return Conveyor
Capacities and Speed:

Edgebanding thickness: .4mm - 15mm (.016-5/8")
Guillotine capacity: 3mm
Feed speed: 40-72 ft/min.
Panel height: 3/8" min – 2 3/8" max
Minimum panel length: 5 1/2"
Minimum panel width: 2"
Minimum distance between panels: 20"

Specifications:

PC 21" Controller
Electronic Positioning of Top Pressure Beam
Lighted Sound Enclosure
Panel Spacing Device
Two Position Infeed Fence
Anti-Adhesive
Pre-Milling Station With Diamond Cutters
Air Cushion Table at Machine Entry
"QMS" Glue Station
Edge detection presence safety device
SGP glue pot
Servo Driven Pressure Section
Spray Mist Device for "Delicate Edge"
"K-SEL" Trimming Station
"RSP" Flush Trimming Station
"RI/S" Servo Driven Edge Trimming Station
"ROUND-K" Corner Rounding Unit
"RAS/S 2P" Edge Profile Scraping Station
Spray Mist Device for "Edge Finishing"
"RCA/2C" Glue Scraping Station
"SPN" Buffing Unit And Hot Air Blower

Technical Specifications

Glue Pot Unit:
Heating Time Approx. 8-10 min.
Pot/Hopper Capacity 1.1 lbs. / 8.8 lbs.
Pre-milling Station:
Horsepower 5.25 HP ea.
RPM 12,000 RPM
Max. Stock Removal 90mm²
Diameter/Bore/Height 100mm/30mm/49mm
End Cutting Trimming Station:
Horsepower .75 HP ea.
RPM 12,000 RPM
Tilting 0-15 degrees
Blade Diameter/Bore 100mm/32mm
Flush Edge Trimming Unit:
Horsepower 1.5 HP ea.
RPM 12,000 RPM
Cutting Tools 70x20x16mm
Tiltable Edge Trimming Unit:
Horsepower 1.5 HP ea.
RPM 12,000 RPM
Tilting 0-25 degrees
Cutting Tools 70x20x16mm
3mm radius knives
Corner Rounding Unit:
Horsepower .80 HP ea.
RPM 12,000 RPM
Cutting Tools 3mm / 1mm
Scraping Unit:
Knife Radius 1mm and 3mm inserts
Buffing Unit:
Horsepower .25 HP
RPM 3,000 RPM
Diameter/Bore 152mm/17mm
Feed Motor Horsepower 2.5 HP
Feed Speed 40-72 FPM
Frequency Converter 200 Hz
Pneumatic Operating Pressure 90 PSI
Machine Weight: 9,105lbs.
Electrical: 130 amps @ 230v three phase
Dust: 3,500 cfm
Dimensions (LxWxH): 262" x 65" x 62"

Includes ERC Panel return
