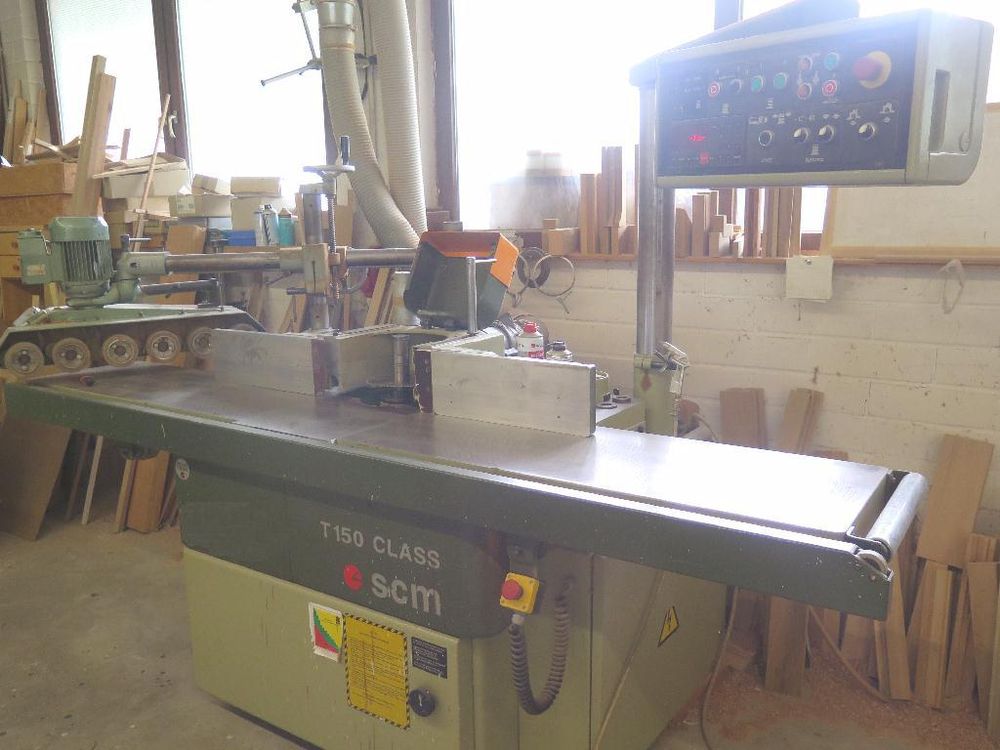

SCM T 150 Class Semi-automatic tilting spindle milling machine

Ref : 2732828-15-MT
Condition : Used
Manufacturer : SCM
Model : T 150 Class
Short Description : Semi-automatic tilting spindle milling machine
Year(s) : 1993
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Semi-automatic - 99 programmable programs
Pivoting control panel at head height
Milling spindle pivots forward: +45°, tilt angle backwards: -10 degrees
5 spindle speeds: 3000/4500/6000/7000/10000 rpm
Spindle speed adjustment via belt and pole change
Speed display on the control panel
Electric milling spindle height adjustment
Electric milling spindle swivel adjustment
Manual spindle lock
Spindle brake
Spindle rotation direction: left/right
Motor power: 5.5 kW
Electric axes, spindle height & swivel
Table length: 2500 mm x table width: 870 mm
Extendable frame support
Stop jaw design: Aigner stop system
Motorized stop adjustment
Manual milling jaw adjustment
With 6-roller feed, Haffner Type T 919
Extraction diameter at the milling stop: 120 mm
Extraction diameter at the machine: 120 mm
19.3 amps
In good working condition
Weight: approx. 1000 kg
Machine dimensions: approx. L: 2500 mm x W: 1500 mm x H: 1800 mm
