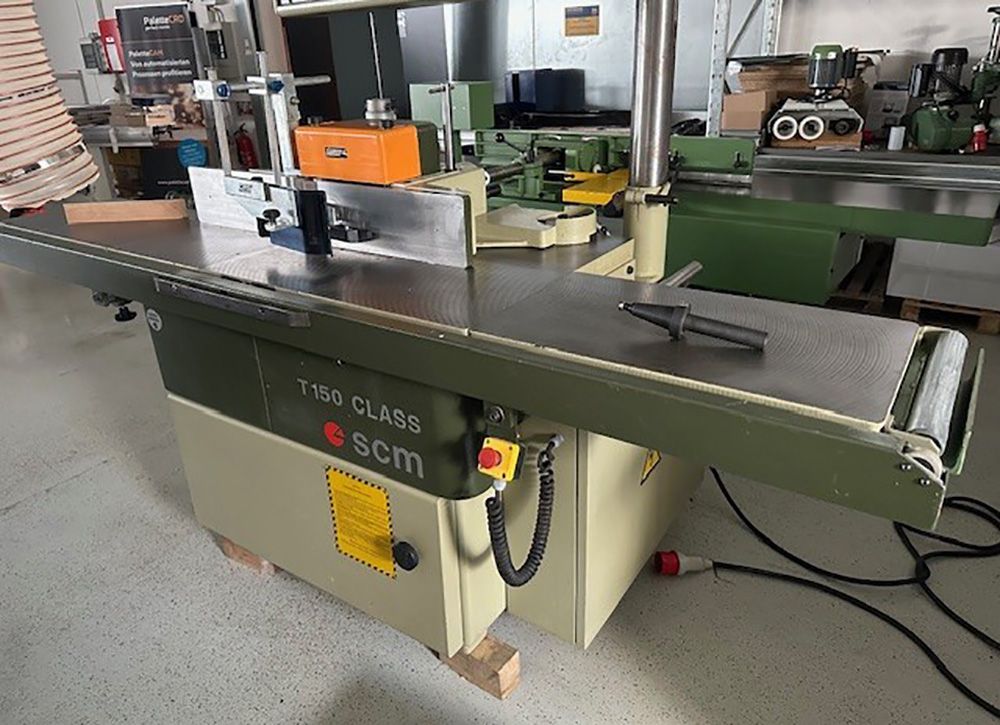

SCM T150 Class Swivel Spindle Milling Machine

Used, excellent condition, top-of-the-line features, many accessories
with 3-axis control, pneumatic spindle change, electronic milling fence adjustment
99 memory programs, 15 interchangeable spindles, adjustable table insert

Reinforced motor: 6/7.5 kW
Swivel range: -10° to +45°
Motorized brake
Motor: 2 speeds/pole-changing
Speed ​​settings: 3250/5000/6500/10,000 rpm

Forward/reverse rotation
Table size 2700 x 700 mm
Cutting arbor diameter 15 x 30 mm / 1 x 40 mm
Cutting arbor mount HSK
Quick-change cutting arbor system SK / HSK
Table extension 2 x 650 mm
Extendable frame support
Aluminum fence jaws
Fence with fine adjustment
Digital displays for fence – diameter – depth of cut – jaw offset
Safety and pressure device
Control panel on top
Swivelable control panel
– Electric height adjustment
– Electric swivel adjustment
– Electric fence
Positioning control for 3 axes (height/swivel/fence) with 99 programs
Digital displays for swivel angle – spindle height – fence depth
Swivel device for fence
Power outlet for feed unit
Dust extraction port 120 x 120 mm
Space requirement approx. 2700 x 1300 x 1800 mm
