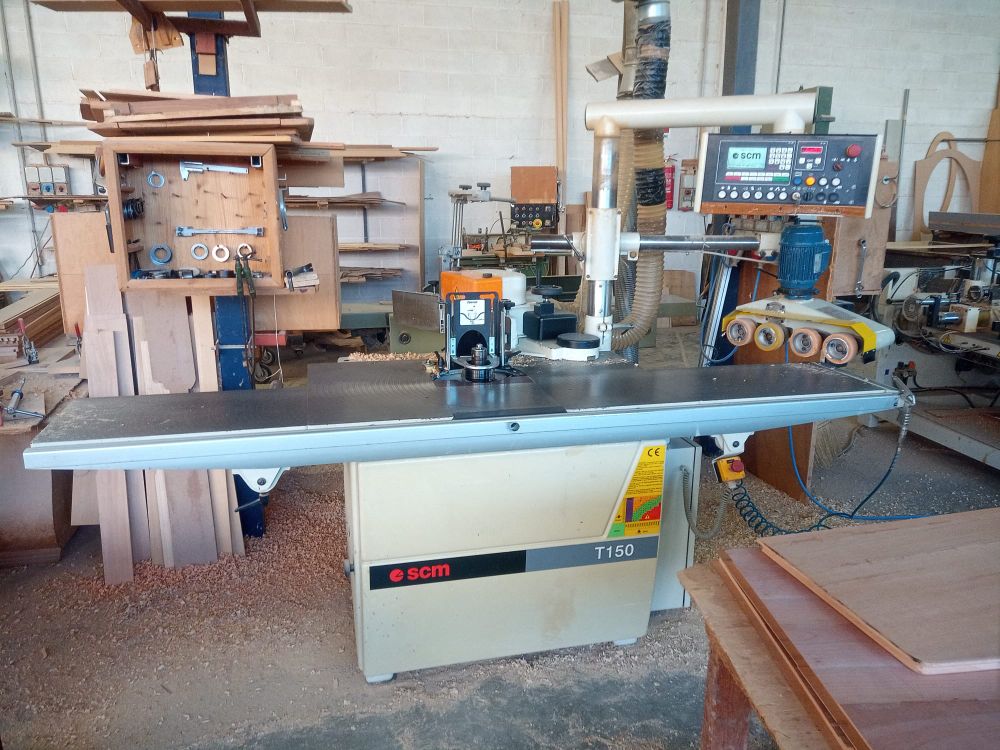

SCM T150

Spindle Moulder with Tilting Spindle
– Spindle tilt -10/+45 degrees
– Spindle diameter 35mm
– Maximum tool diameter with profiling fence 250mm
– Maximum tool diameter that can be retracted under the table 320mm
– “Fast” sector table for optimized workpiece support under the tool, adjustable from the outside as an alternative to the table rings

Machine with:
“LL” version: table with 2 profiling extensions
– Length 2500mm, complete with adjustable front support bar for large workpieces and emergency stop button

Electronically programmed spindle and fence complete with:
– Pendant control panel
– Fully excludable fence from the table
– 3-axis microprocessor-based electronic programmer for automatic programming of the different positions:
* Spindle Moulder height
* Spindle Moulder tilt
* Fence positioning
– FLEX type spindle fence With handwheel input, electric movement via a continuous motor for the translation of the guide.
– Sequential axis movement
– Possibility of simultaneously storing up to 999 programs (3 axes combined)
– Possibility of using the programmer as a positioner for the 3 axes in addition to the 999 programs.
– 5-inch backlit LCD membrane keyboard
– Real-time display of operating status
– Line for writing text to associate with the program
– Machine reset option
– Aluminum guide surfaces with continuity lines
– Display of the selected speed
– Motor with automatic star-delta start-up

Inverter for speed changes up to 10,000 rpm
– Selection of shaft speed, selected from the control panel, with electronic digital display of the number of revolutions.
– Automatic main motor start-up
– Electronic braking system

Rotary spindle rotation reversal
Manual feeder support device
A cross-type device that, using the column of the overhead control panel, allows
* Manual adjustment of the feeder height using a handwheel, with the measurement displayed on a mechanical digital readout
* Manual adjustment of the horizontal post position using a handwheel
The device also allows the feeder to be excluded from the work surface.

EUROMEC MASTERWOOD 4-wheel feeder
CE-certified machine, complete with documents and accessories.
AVAILABLE FROM JUNE 2026
