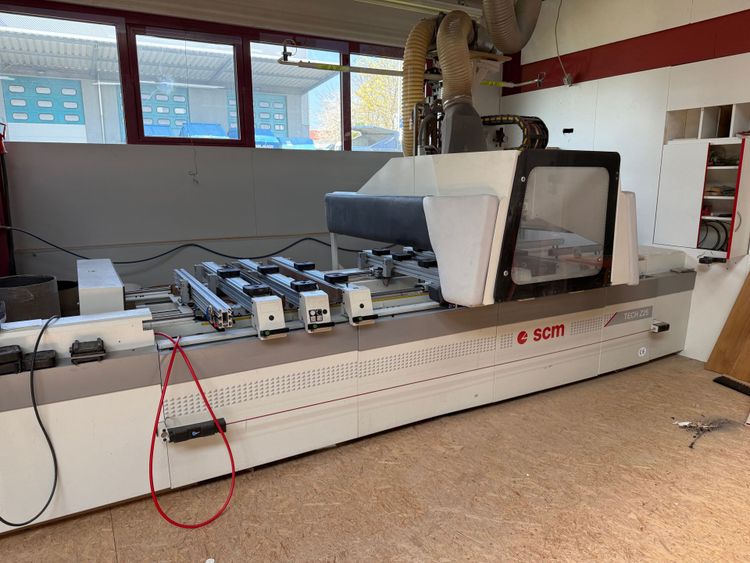

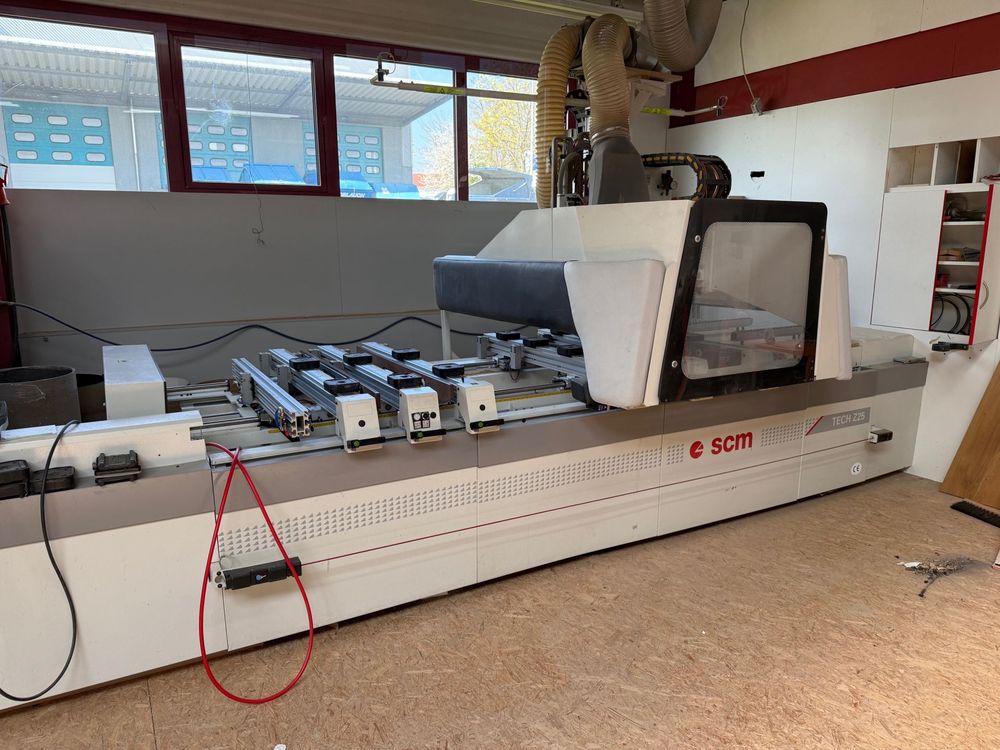

SCM TECH Z25

Working area: 2780 x 1140 mm
(Vertical milling) 2500 x 950 mm
(Horizontal drilling) :
X-Y travel: 2980 x 1271 mm
Z-axis travel length: 200 mm
Aperture height: 180 mm

Drilling unit:
Drill head with 10 + 4 spindles
· 6 individually controllable vertical spindles in X-axis
· 4 individually controllable vertical spindles in Y-axis
· 2 horizontal spindles in X-axis (1 + 1)
· 2 horizontal spindles in Y-axis (1 + 1)
· Speed: 4,000 rpm
· Power: 2.2 kW
· Pitch: 32 mm
· Drill chuck: M 10 with 11 mm seat
· Extractor nozzle: D = 160 mm

Vertical milling unit (position 2)
· HSK 63F tool holder
· Speed ​​1,500 - 24,000 rpm continuously adjustable via inverter
· Motor power 4.4 kW (6 HP) from 12,000 rpm (S1)
· Forward/reverse rotation
· Ceramic bearings
· Scope of delivery: 4 tool holders (right) without collet

Tool changer
· 7-station side-mounted tool magazine (TR7) with full chip protection
· 7 tool positions for HSK 63F tool holders arranged in a row
· Maximum tool diameter D = 120 mm
· Maximum weight per collet: 4.5 kg
· Maximum tool weight of all tools: 20 kg (TR7)
· Able to accommodate angle gears

Horizontal milling unit (position 1)
Horizontal unit with two opposite
outputs for milling and grooving.
Speed ​​9,000 - 18,000 rpm continuously adjustable via inverter
· 1 output for collet 3-20 mm (ER 32)
· 1 output for saw/collet 3-12 mm (ER20)
(For saw D = 120 mm / bore 50 mm)
· Motor power 3 kW (4 HP)
· Max. tool diameter, front milling: 20 mm
· Max. tool length, front milling: 110 mm
· Max. tool diameter, rear milling: 12 mm
· Max. tool length, rear milling: 80 mm
· Max. saw blade diameter: 100 mm
· Saw blade bore (ER 32): 50 mm
· Saw blade arbor diameter (ER 20): 12 mm

Worktable: The worktable is designed to guarantee the operator maximum freedom of movement.
The quick-action vacuum clamping system ensures maximum flexibility with precise positioning and optimal grip of the workpieces.

· 4 supports, 900 mm long, continuously manually adjustable in X-axis.
· 8 round vacuum suction cups, D = 110 mm, continuously adjustable in Y-axis (2 per support).
· 2 stops in X-axis (1 left / 1 right).
· 1 stop in Y-axis per support (6 total).
· The retractable reference stops are CNC-controlled.
· Scope of delivery: 4 suction cup adapters.
· Standard pendulum machining (2 work areas).
