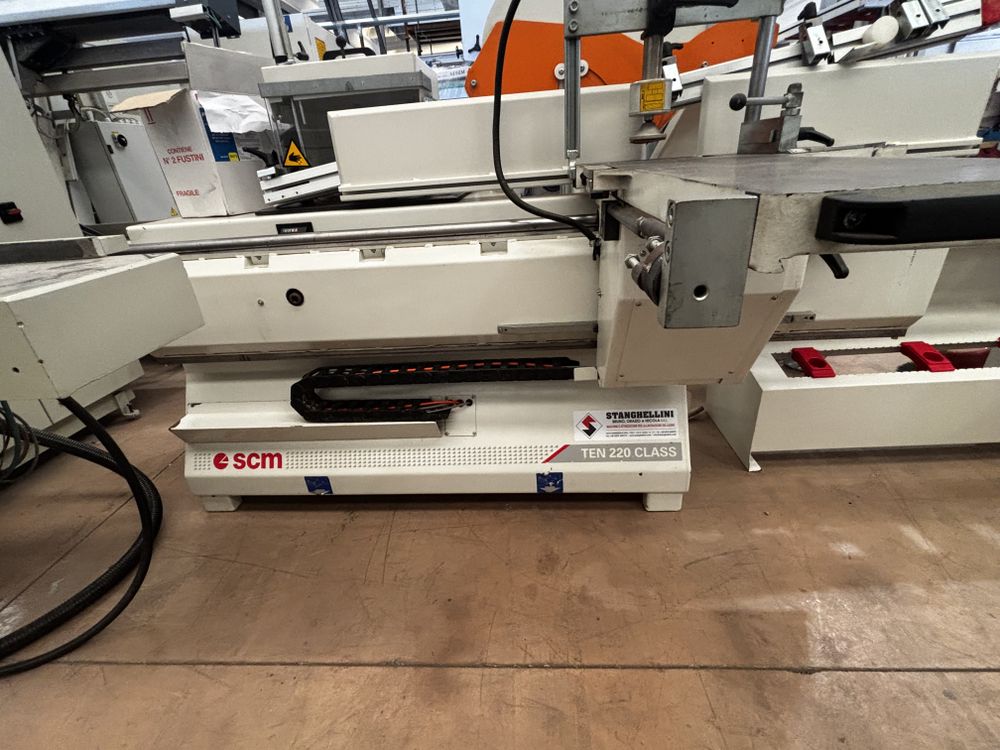

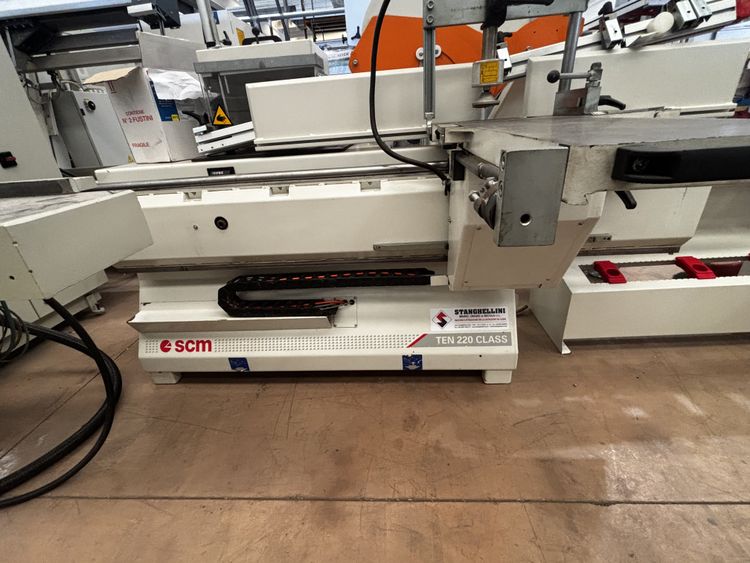

SCM TEN 220 CLASS Tenoning Machine

Technical data:
Quick tool change with ISO 40 system
All tools are always ready and mounted on their respective shafts
It takes just a few seconds to position the tool

Circular saw unit:
Max. blade diameter mm 400
Max. cutting height mm 120
Rotation speed rpm 3000
Longitudinal blade movement mm 120

Workpiece table unit:
Plane movement towards the tool mm 105
Tilt of stop guide +/- 45 degrees
Extendable stop up to mm 2800
Rotary splinter guard

Tool holder shaft:
Max. tool diameter mm 350
Tool rotation speed rpm 3600
Suction mouth diameter mm 120
Motor power Kw 5.5
Quick shaft change system ISO 40
Shafts supplied
