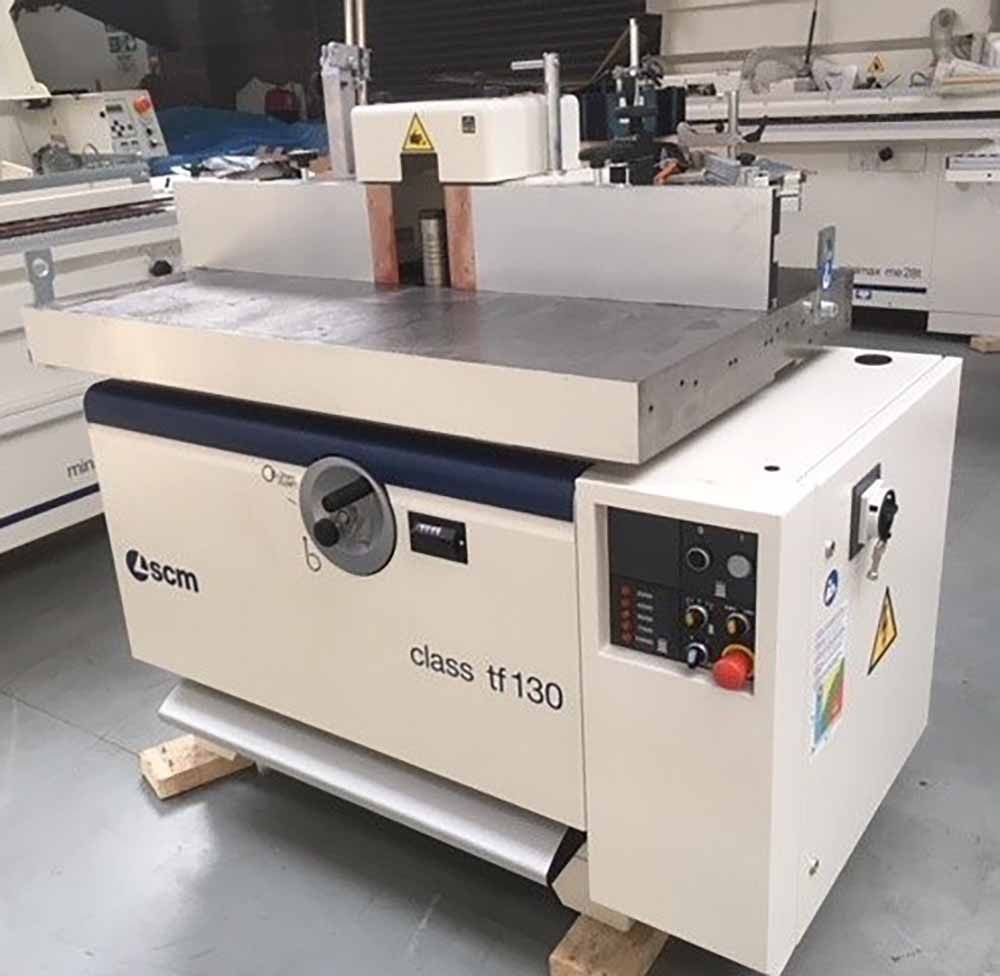

SCM TF130 Class

Heavy Duty Spindle Moulder
Worktable dimensions [mm] 1200x730
Working length of spindle (C.E). diam. 30-35 (40-50) [mm] 140 (180)
Spindle base projection from table [mm] 52
Spindle base projection from table with interchangeable spindle [mm] 92
Max tool diameter retractable under worktable with rings [mm] 320x85
Spindle fence stroke with mechanical programming (positioning with respect to the spindle axis) [mm] 125
(from -125 to +125 with MK5 spindle)
External diameter of exhaust outlet on spindle moulder hood [mm] 120
External diameter of exhaust outlet on base [mm] 120
Air flow speed of exhaust hood [m/s] 20
Exhaust system air consumption [m3/h] 1700
Electric speed display dial (CE and electrical protections versions) 3000/4500/6000/7000/10000 rpm spindle speeds

Complete with
7.5Hp Motor (S1)
MK5 interchangeable spindle 30mm diameter
Spindle moulder fence with mechanical adjustment
Spindle moulder fence with continuous linear adjustment by handwheels accessible from the front of the machine:
* adjustment of entire fence in respect of tool diam.
*adjustment of entry fence for thick removal
– mechanical readout for the adjustment
– 250 mm max. tool diameter
Aluminium Fences
(LL Extension Tables Not Included)
