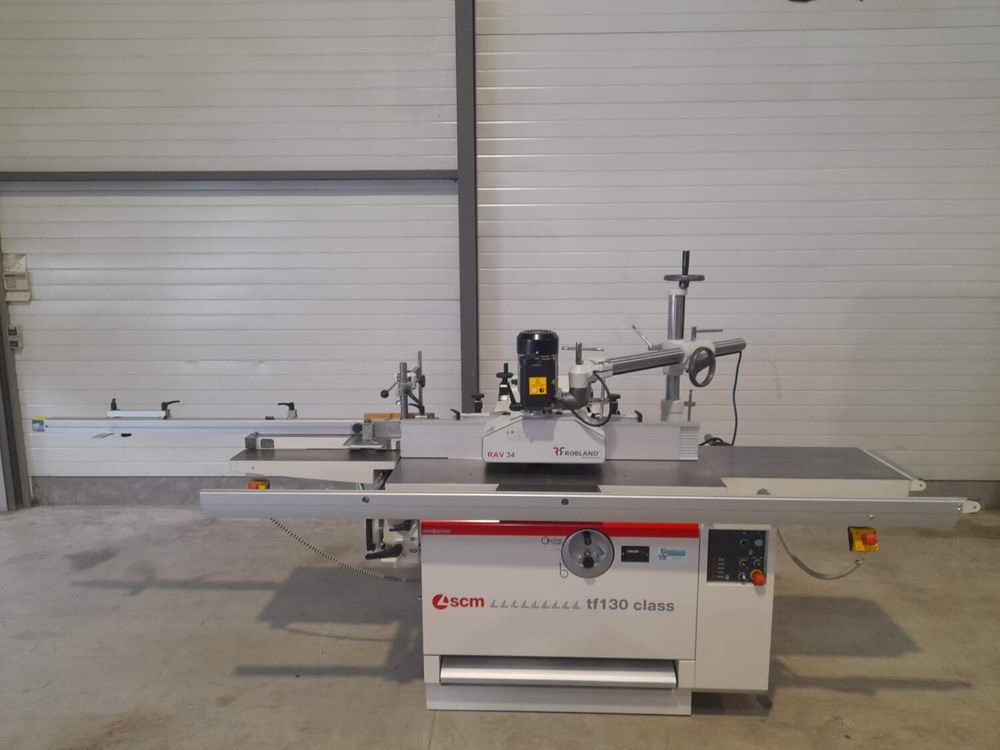

SCM TF130

Spindle Moulder with tenoning carriage
Features:
Manual movement for raising the spindle with digital display for setting the working depth
Recordable spindle guide with wooden tables, dust extraction hood and wooden table extension, maximum tool diameter 250 mm
Spindle speed 3000/4500/6000/7000/10000 rpm
Electrical display of inserted speed
Electrical preparation for drive
Spindle rotation reversal with electric interlock for starting
Automatic star-delta start
Motor power [S6 -40%] 7 kW / 9.5 HP / 50 Hz
Spindle machining protection (maximum tool diameter 160 mm)
Emergency stop button
Spindle lock safety microswitches
Motor access door safety microswitch
Lockable main switch
Protection Magnetothermal
110V auxiliary circuit transformer
Automatic motor brake on main motor
Certificate of conformity according to CE standards

Technical data :
Machining table dimensions: 1200×730 mm
Usable spindle length (CE Ø30/35(40/50)): 140(180) mm
Spindle base overhang: 52 mm
Spindle base overhang with interchangeable spindle: 92 mm
Maximum diameter of retractable tool below the table, with bushing table: 320×85 mm (with Fast sector table: 300×85 mm)
Spindle cutter guide stroke with mechanical programming: 125 mm (positioning relative to the spindle axis: -125 to +125 mm with MK5 spindle)
Dust extraction port outer diameter on the spindle head: 120 mm
Outer diameter of the Dust extraction ports on the frame (specific for forced air cooling of the electro-spindle) 120 mm
Airflow speed of the dust extraction system: 20 m/s
Air consumption of the dust extraction system: 1700 m³/h

Machine options:
Bar guide
"TL" version for tenoning and profiling (CE)
with manually advanced tenoning carriage,
eccentric clamp,
tilting telescopic guide with 4 reference stops for programming workpiece lengths,
1 anti-splintering device on the guide with reference stop,
1 complete infeed table extension with adjustable front support bar for large workpieces,
tenoning hood with dust extraction hood:
with quick tool change, max. tool diameter 300 mm,
with 30 to 35 mm spindle, max. tool diameter 300 mm,
with a 40-50 mm arbor, max tool diameter 350 mm,
emergency stop button,
operator protection arm,
microswitches for control and speed limitation to 3000/4500 rpm during tenoning operations.
