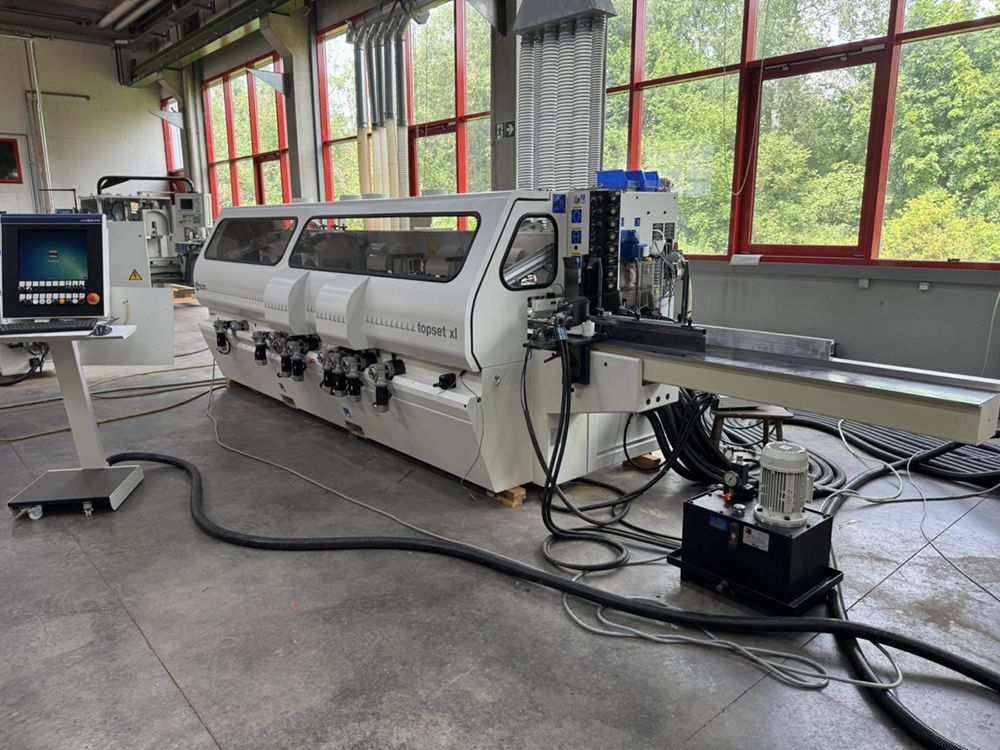

SCM Topset XL

Summary:
- 9 spindles (including 4 x HSK 85 S)
- Electronic horizontal and vertical positioning
- 8,300 rpm
- SCM "Set-up"
- SCM "T-Set"
- Includes workpiece infeed magazine

Working dimensions:
- Maximum working width: 240 mm
- Minimum working width: 25 mm (reducible to 15 mm via installed special kit)
- Maximum working height: 120 mm
- Minimum working height: 10 mm (reducible to 6 mm via installed special kit)
Special working cross-section equipment: Equipped with a special kit for
extremely small minimum cutting dimensions of 15 x 6 mm.

Infeed table and table surfaces:
- Infeed table length: 2,500 mm (2.5 meters)
- Surface finish: Wear-resistant, special chrome-plated finish
for optimal sliding properties and minimal wear. Spindle specifications:

1. Spindle: 1st horizontal spindle (BOTTOM):
- Motor power: 11 kW
- Speed: 6,000 rpm
- Shaft: High-precision spindle, 40 mm diameter

2. Spindle: 1st vertical spindle RIGHT:
- Motor power: 11 kW
- Speed: 8,300 rpm
- Tool mounting: Milling spindle with HSK 85S quick-change mount
- Vertical positioning: Electronic vertical positioning
- Horizontal positioning: Electronic horizontal positioning

3. Spindle: 1st vertical spindle LEFT:
- Motor power: 11 kW
- Speed: 8,300 rpm
- Tool mounting: Milling spindle with HSK 85S quick-change mount
- Vertical positioning: Electronic vertical positioning
- Horizontal positioning: Electronic horizontal positioning
- Tool diameter adjustment "SET UP": Electronic regulation of
tool diameter, tool diameter positioning

4. Spindle: 2nd vertical spindle RIGHT:
- Motor power: 11 kW
- Speed: 8,300 rpm
- Tool mounting: Milling spindle with HSK 85S quick-change mount
- Vertical positioning: Electronic vertical positioning
- Horizontal positioning: Electronic horizontal positioning

5. Spindle: 2nd vertical spindle LEFT:
- Motor power: 11 kW
- Speed: 8,300 rpm
- Tool mounting: Milling spindle with HSK 85S quick-change mount
- Vertical positioning: Electronic vertical positioning
- Horizontal positioning: Electronic horizontal positioning
- Tool diameter adjustment "SET UP": Electronic regulation of tool diameter, Tool diameter positioning

6. Spindle: 1st horizontal spindle (TOP):
- Motor power: 11 kW
- Speed: 8,300 rpm
- Shaft: High-precision spindle, 40 mm diameter (working length 250 mm)
- Tool clamping: "T-SET" quick-clamping system for tools
- Vertical positioning: Electronic vertical positioning
- Horizontal positioning: Electronic horizontal positioning
- "SET UP" tool diameter adjustment: Electronic tool diameter regulation, tool diameter positioning

7. Spindle: 2nd horizontal spindle (BOTTOM):
- Motor power: 11 kW
- Speed: 8,300 rpm
- Shaft: High-precision spindle, 40 mm diameter (working length 250 mm)
- Tool clamping: "T-SET" quick-clamping system for tools
- Vertical positioning: Electronic vertical positioning
- Horizontal positioning: Electronic horizontal positioning

8. Spindle: 2nd horizontal spindle (TOP):
- Motor power: 11 kW
- Speed: 8,300 rpm
- Shaft: High-precision spindle, 40 mm diameter (working length 250 mm)
- Tool clamping: "T-SET" quick-clamping system for tools
- Vertical positioning: Electronic vertical positioning
- Horizontal positioning: Electronic horizontal positioning
- "SET UP" tool diameter adjustment: Electronic tool diameter regulation, tool diameter positioning

9. Spindle: 3rd horizontal spindle (BOTTOM):
- Motor power: 11 kW
- Speed: 8,300 rpm
- Shaft: High-precision spindle, 40 mm diameter (working length 250 mm)
- Tool clamping: "T-SET" quick-clamping system for tools
- Vertical positioning: Electronic vertical positioning
- Horizontal positioning: Electronic horizontal positioning

Control System Specifications:
- Control type: CONTROL 100 PC PLUS (specifically configured for machine configuration 323).
- Hardware base: Integrated industrial PC for fully electronic management of all machine axes.
- Network connectivity: PC equipped with a second network card (Ethernet interface) for seamless integration into the company network.
- Operation concept: Supports the "MOBILE" electronic control system, enabling flexible operation directly at the machine's setup stations.
- Axis communication: Equipped with an electrical modification kit for modern
CAN-bus connectivity, ensuring extremely fast and interference-free signal transmission between the PC and the spindle drive motors.

Auxiliary Systems & Lubrication Technology:
- Table lubrication: Equipped with an automatic lubrication pump for constant wetting
of the machine table, minimizing frictional resistance when processing wet or resinous wood.

- Forced lubrication: Integrated, automated forced lubrication system for the linear guides, carriages, and drive screws of the processing units.
- Air-blast system: Automatic air-blast system located directly on the work table
to continuously remove planer chips and wood dust from the feed area.
- Air-cushion table: Integrated air-cushion table in the infeed area to significantly reduce sliding resistance
for heavy or sticky solid wood components.

Feed System & Roller Configuration:
- Feed motor: Powerful 7.5 kW main drive for workpiece transport.
- Auxiliary feed unit: Equipped with a specialized feed unit positioned after the top spindle.
- Rollers in the machine table: 3 motorized, driven feed rollers recessed directly into the work table to assist in transporting heavy or damp wood.

Option:
Used planer heads, as-is (pictures on request)
