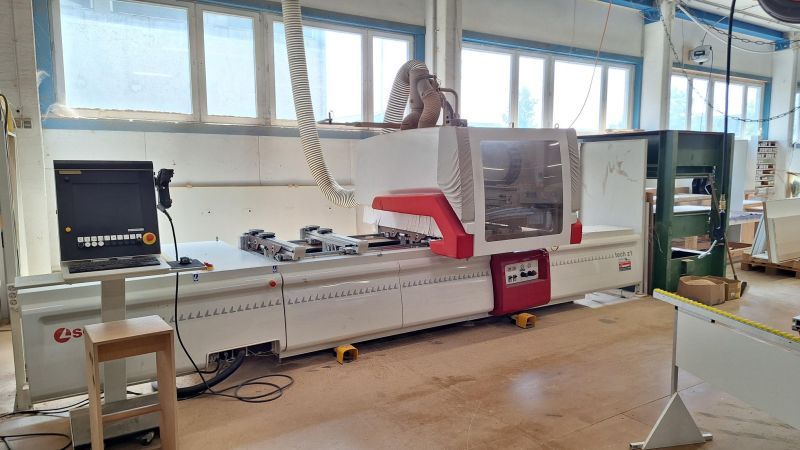

SCM Z 1 26 A

· Working area: 2,550 x 1,067 mm
· X-Y travel: 2,980 x 1,450 mm
· Z-axis travel length: 150 mm
· Passage height: 120 mm

F14 drilling unit:
Drilling head with 8 + 6 spindles
· 5 individually controllable vertical spindles in X
· 3 individually controllable vertical spindles in Y
· 4 horizontal spindles in X (2 + 2)
· 2 horizontal spindles in Y (1 + 1)
· Speed: 4,000 rpm (6,000 rpm optionally available)
· Power: 2.2 kW
· Pitch: 32 mm
· Drill chuck: M 10 with 11 mm fit
· Pneumatic Feed stroke: 60 mm

Grooving saw unit in 'X'
· Integrated in the drill head
· Grooving saw blade with a diameter of up to 120 mm

Main milling unit:
· HSK 63F tool holder
· Speed 1,500 - 24,000 rpm, continuously variable via inverter
· Motor power 6.6 kW (9 HP) from 12,000 rpm (S1)
· Motor power 7.5 kW (10 HP) from 12,000 rpm (S6)
· Forward/reverse rotation
· Ceramic bearings
· Preparation for the use of angle gears

TR10 tool changer
Automatic lateral tool changing device for 10 tools.

Number of tool positions: 10
· Max. tool diameter: 120 mm
· Max. weight per tool: 4.5 kg
· Max. total weight of all tools: 28 kg

A central extraction nozzle combines allnprocessing units into one connection with a diameter of 200 mm.
This reduces the required extraction capacity to approximately 3200 m³/h.

TVF Work Table
The work table is designed to guarantee the operator maximum freedom of movement.
The vacuum quick clamping system ensures maximum flexibility with precise positioning and optimal grip of the workpieces.

4 TVF supports, L = 1100 mm, continuously adjustable in X
12 TVF vacuum suction cups, 120 x 120 mm, continuously adjustable in Y
2 stops in X (1 x left / 1 x right)
1 stop in Y per support (4 in total)
The retractable reference stops are CNC-controlled

Automatic central lubrication
The correct amount of grease is distributed (X, Y, Z axes) via an electronic CNC control unit

Vacuum system (basic machine):
Vacuum pump: 90 m3/h
Power: 2.2 kW
Max. vacuum (at pump): 0.9 bar

XILOG PLUS PROGRAMMING SYSTEM
Software features:
- Import of DXF files
- Import of ASCII files
- User interface in the operator's native language
Safety devices with bumpers

Technical specifications Machine
· Total connected load: 18 kW
· Recommended fuse: 64 A
· Power supply: 400 V 50-60 Hz · Compressed air: 6-7 bar
· System pressure (recommended): 8 bar
· Compressed air consumption: 200 Nl/min
· Central extraction nozzle diameter: 200 mm
· Extraction speed: 30 m/s
· Air consumption (central extraction): 3,200 m3/h
· Negative pressure: 3,000 Pascal
· Weight: approx. 2,500 kg

Remote control of machine functions
6 TVF supports (L = 1,100 mm) and 18 vacuum cups (120 x 120 mm)
Cross laser for positioning the vacuum cups
Two cross lasers mounted on the unit carrier are used for easy positioning of the vacuum cups.
