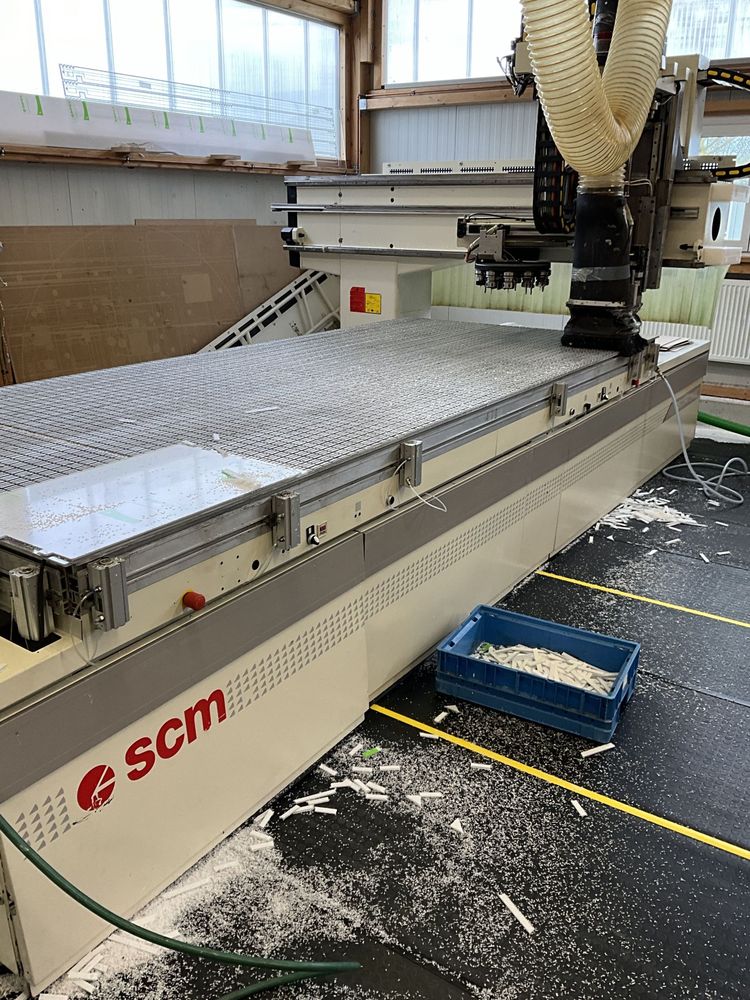

SCM Record 210 NT

Travel: X=4400 Y=2195 Z=440 mm
Working area in X=3650 mm Y=1560 mm
Aperture: 330 mm
SCM Power 2000 electric spindle
High-speed milling spindle with 13 kW power
Vector rotary axis (C-axis)
Cleaning fan for tools on the milling unit
HSK 63 F tool holder
Speed 600 - 24,000 rpm continuously adjustable via inverter
Motor power: 8.5 kW
Tool holders: 6
Tool changer: Rapid 12 (12 positions)
Vacuum pump 250 m³/h / 5.5 kW
Max. vacuum: 0.9 bar
Reference stop on the table sides
Drilling unit with 11 spindles (7 vertical / 4 horizontal) horizontal)
Control: NUM Series 1000
User interface: XILOG Plus
PC Office hardware: WINDOWS XP Professional
Total connected load: max. 27.5 kW
Weight: 5200 kg
