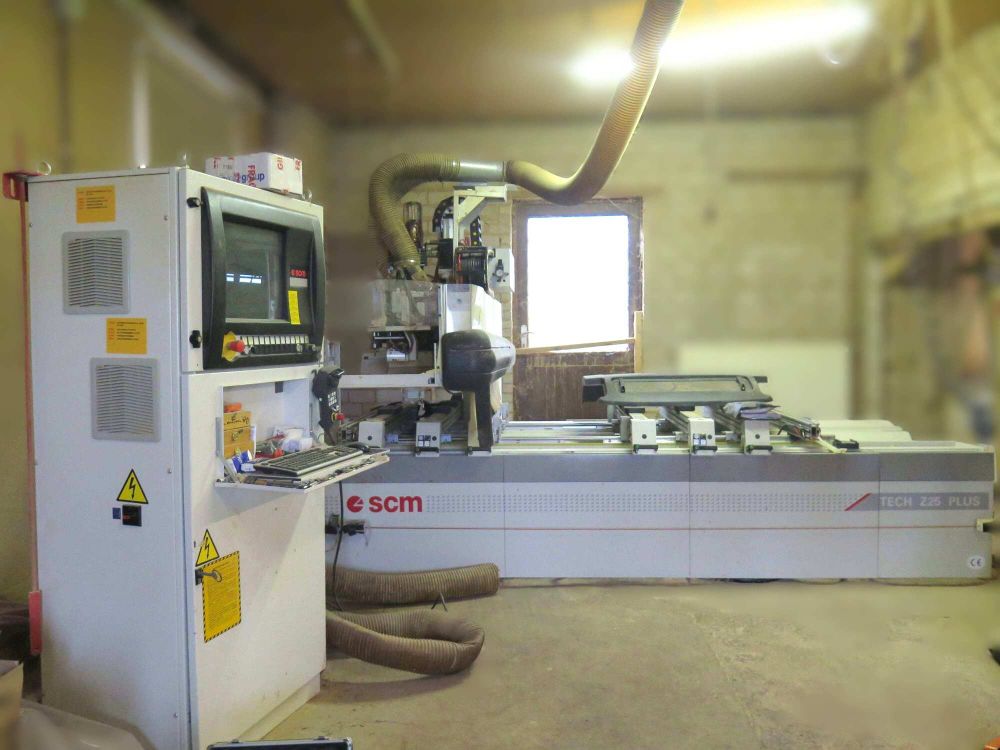

SCM Z 25 PLUS R4R4

CNC Machining Center
In 2022, new KVARA6 4A AN +6A MECH- ESA-GV control system was installed .
Total operating hours: approx. 8,000–10,000
X-axis working range between stops: 2500 mm
Y-axis vertical drilling: 1018 mm
Y-axis milling: 1240 mm
Maximum plate travel: 180 mm
Maximum plate thickness Z: 100 mm
Z-axis travel: 200 mm
Central lubrication (top and bottom)
Drilling unit with 15 vertical spindles
6 horizontal spindles (4 in X direction and 2 in Y direction)
Spindle speed: 4000 rpm
Spindle motor power: 2.2 kW
X-Y axis traverse speed: 42.4 m/min

Z-axis traverse speed: 11.5 m/min.
Main spindle power: approx. 6.6 kW
Maximum main spindle speed: 24,000 rpm.

Front tool changer with 4 tool holders
Rear tool changer with 4 tool holders
16 rectangular vacuum suction cups
HSK 63 tool holder
Compressed air 6/7 bar, compressed air consumption 150 l
Vacuum pump 40 m³/h 3/3.6 kW
Air intake velocity 30 m/h
Extraction port diameters 160 + 200 + 200 mm
With chip conveyor belt in the machine body
Protective guard included

XILOG Plus control program
All Windows features
Typical machining operations in craft and industrial businesses, implemented
in a simple and intuitive user software

Dimensions approx. 5780 mm x 2460 mm with protective guard
Without protective guard approx. 4780 mm x 2000 mm
Height 2560 mm
Total weight approx. 3,000 kg
Machine approx. 2,600 kg
Control cabinet approx. 400 kg
