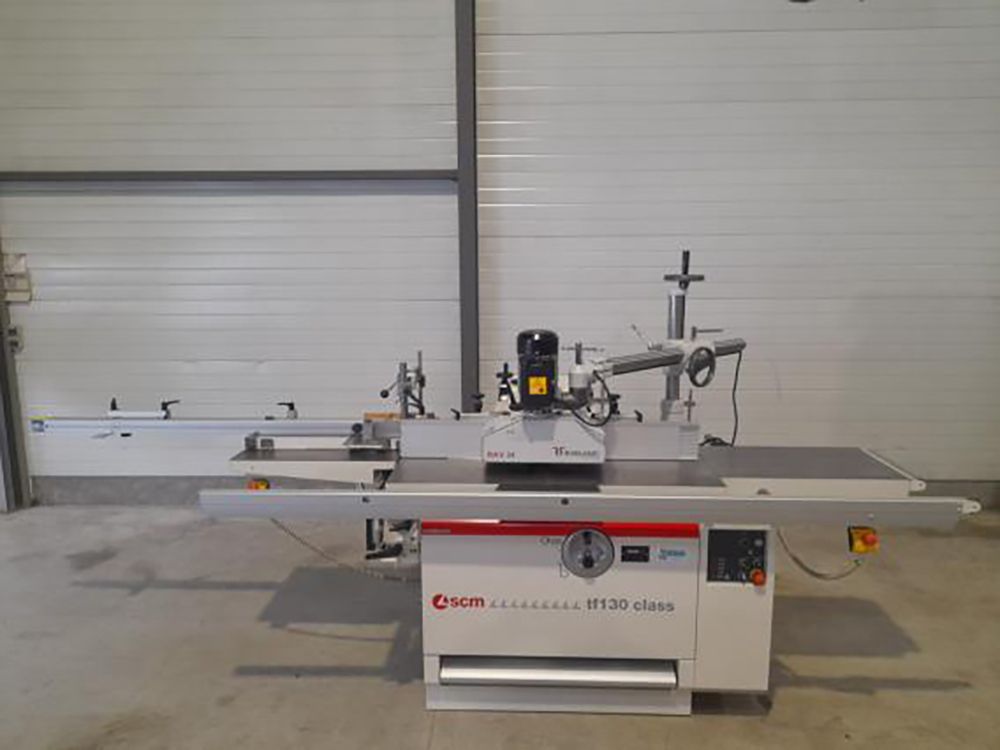

SCMI TF130 CLASS

ROUTER SPINDLE
Used Machine

Features:
Manual movement for raising the tool spindle with a digital display for reading the working dimension
Recordable spindle guide with wooden tables, exhaust hood, and wooden table extension, maximum tool diameter 250 mm
Spindle rotation speed: 3000/4500/6000/7000/10000 rpm
Electric display of the inserted speed
Electrical pre-set for the drive
Rotator spindle rotation direction reversal with electrical interlock for starting
Automatic star-delta starting
Motor power: 7 kW / 9.5 HP / 50 Hz
Protection for spindle machining (maximum tool diameter 160 mm)
Emergency stop button
Safety microswitches for spindle lock
Safety microswitch on the motor access door
Lockable main switch
Thermal-magnetic protection
Transformer for 110V auxiliary circuit
Automatic motor brake on main motor
Certificate of conformity according to CE standards

Technical Data:
Machining table dimensions: 1200x730 mm
Useful length of CE spindle Ø30/35(40/50) 140(180) mm
Extension from the base of the table spindle: 52 mm
Extension from the base of the table spindle with interchangeable spindle: 92 mm
Maximum diameter of the retractable tool below the table, with ring table: 320x85 mm
Spindle guide stroke with mechanical programming: 125 mm (positioning relative to the spindle axis from -125 to +125 mm with spindle MK5)
Outer diameter of the suction inlet on the spindle moulder cover: 120 mm
Outer diameter of the suction inlets on the frame (specific for forced air cooling of the electrospindle): 120 mm
Airflow speed of the suction system: 20 m/s
Air consumption of the suction system: 1700 m3/h
Machine options:
"TL" version for tenoning and profiling (CE version)
ROBLAND - RAV34 feeder
