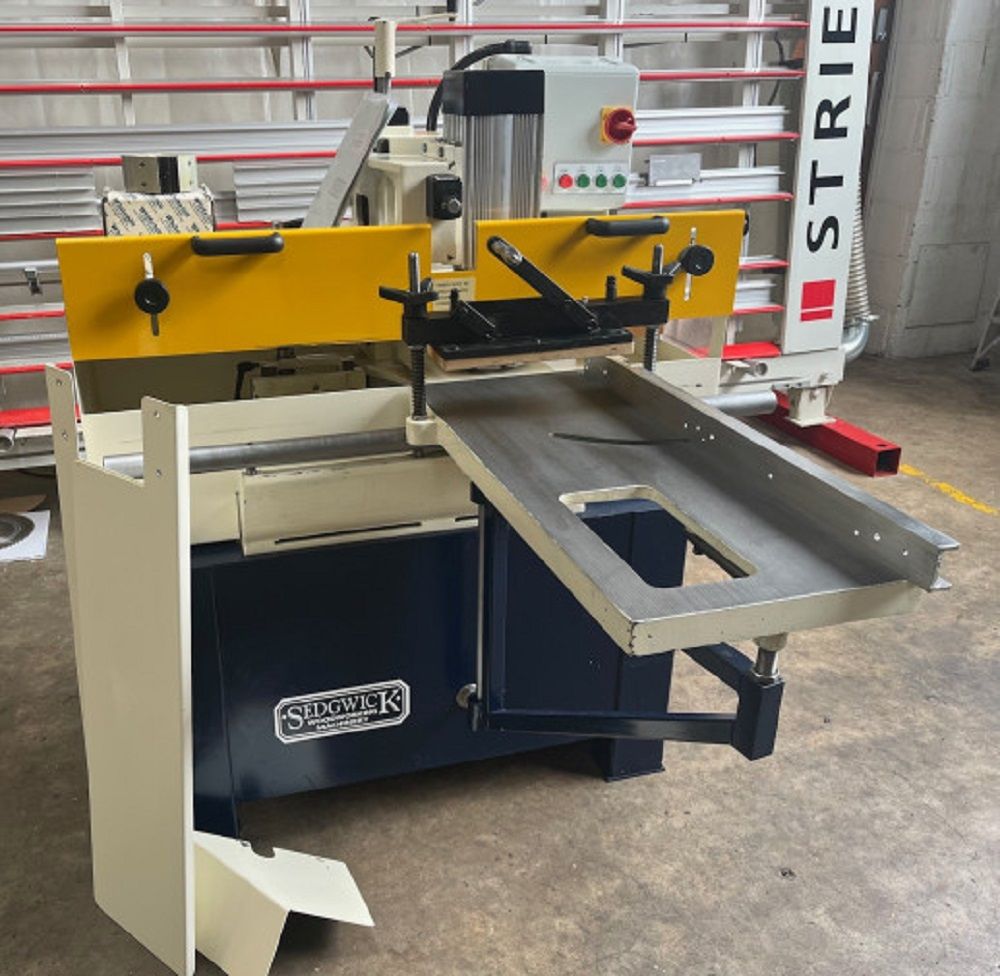

Sedgwick TESH Single Ended Tenoner

USED 3 Head Single Ended Tenoner
TIMBER CAPACITY 130 x 310mm
TIMBER CAPACITY WITH FENCE @ 45 130 x 250mm
MAXIMUM LENGTH OF TENON 155mm
MAX. LENGTH OF TENON 2 PASSES 205mm
VERTICAL ADJUSTMENT OF BOTTOM CUTTERBLOCK 0 - 60mm
VERTICAL ADJUSTMENT OF TOP CUTTERBLOCK 0 - 120mm
HORIZONTAL ADJUSTMENT OF TOP CUTTERBLOCK +/- 32mm
TABLE SIZE mm 800 x 310
TABLE WORKING HEIGHT 860mm
MAIN CUTTERHEADS 2 x 175 x 60 mm Each with 4 shear cut replaceable knives, 2 spur cutters, and provision for 2 scribing cutters and chip limiters.
DUST EXTRACTION OUTLETS 2 x 150mm
VOLTAGE / FREQUENCY 3 PHASE + EARTH ; 400/230 V – 50/60 Hz

Scribing Head:
New (Unused) WHITEHILL CUTTERBLOCK 125mm x 65mm x 30mm Bore Cut Limiter
SHAFT DIAMETER 30mm (end-tapped M12, 8mm keyway)
EFFECTIVE LENGTH OF SHAFT 75mm
VERTICAL MOVEMENT 95mm
HORIZONTAL MOVEMENT 30mm
MAXIMUM DIAMETER OF TOOLING 210mm
MOTOR RATING 3 PHASE 4.0Kw (S6 40%)

Complete Safety Elbow Guards
Instruction book
Adjusting handle

Safety Features :
The TESH offers all of these safety features as standard:
◾Automatic braking
◾Starters with thermal overload, no volt release protection and lock off emergency stop switch.
◾High performance lightweight cutter blocks with chip limiting devices
◾Large diameter dust extraction outlets
◾One piece front cutter guard
◾Front & rear table guards

Technical specification:
Cam action clamp
Automatic braking
Hardened steel rollers on sliding table
Large diameter dust extraction outlet
High performance lightweight cutter blocks with chip limiters
Cast Iron base, column,slideways and sliding table
