Seiger CNC Control Variable SLZ 570/2 1998 2 Axis

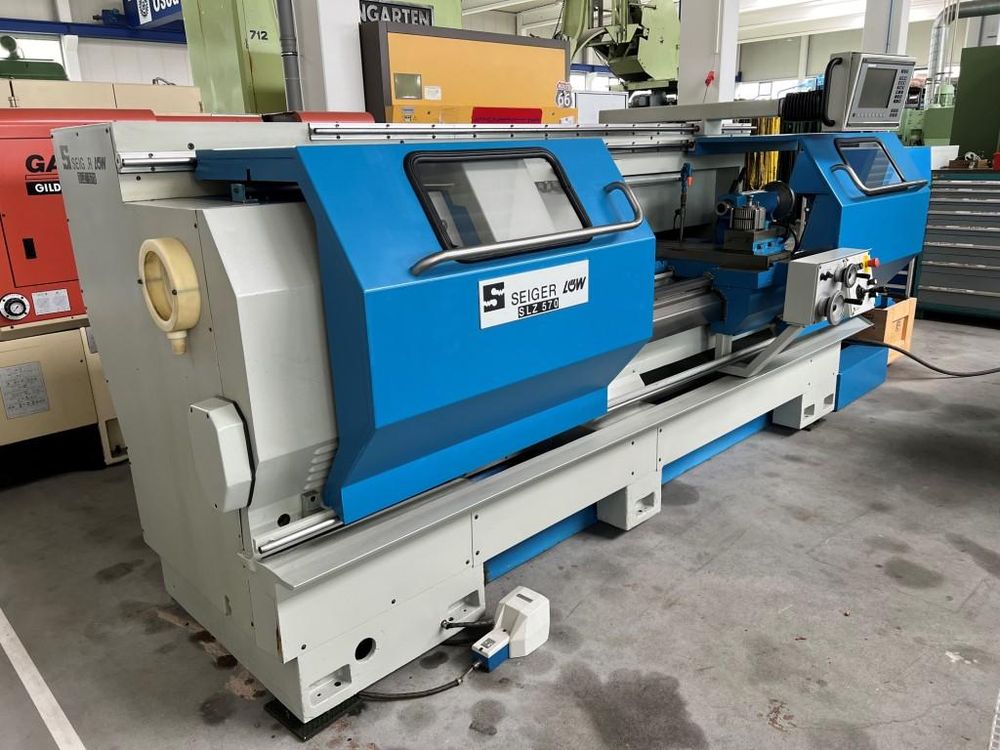

SEIGER SLZ 570/2
Good condition, can be inspected under power ! Ideal machine for workshop, single-part

CNC Universal Teach-In lathe with HEIDENHAIN MANUAL M control

Swing-Æ above bed 570 mm

Swing-Æ above slide 340 mm

Center distance / Turning length 2.000 mm

Support travel X-axis / Z-axis 260 / 2.050 mm

Spindle bore 65 mm

Spindle speeds (2-steps) infinitely adjustable 1 – 2.500 /min

Turning torque max. 1.600 Nm

X-axis feed max. / rapid feed max. 7.000 mm/min

Z-axis feed max. / rapid feed max. 10.000 mm/min

Feed force x-axis / z-axis 700 / 1.000 daN

Tailstock taper / sleeve stroke MK 5 / 160 mm

Spindle drive 16 kW

Total electrical load approx. 20 kW - 400 V – 50 cycles

Weight approx. 4.000 kg
