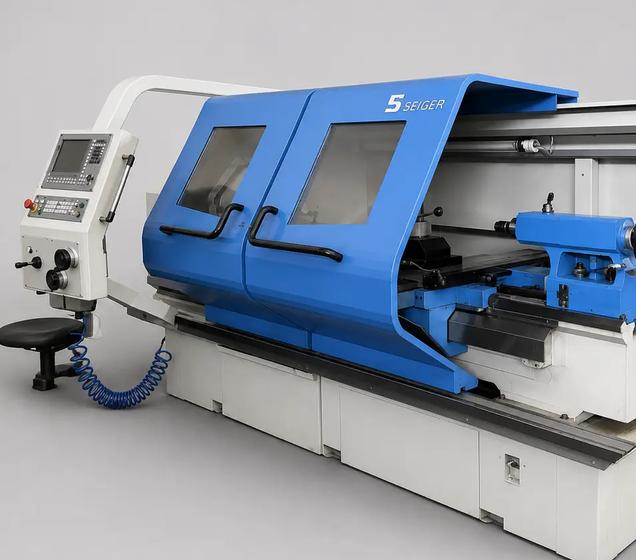

Seiger Heidenhain Teach-In CNC 3000 rpm SLZ 570E 2 Axis

Control: Heidenhain Teach-In CNC
Machine type: CNC Teach-In / Cycle Lathe
Automatic cycle programming
Electronic handwheels
Fully enclosed guarding
Coolant system
Work light
Automatic lubrication
Safety enclosure
Heavy duty cast iron bed
Hardened and precision ground guideways
Hydraulic chuck
Tailstock
Excellent accessibility for shaft work
Bar capacity: 90 mm
Spindle bore: 93 mm
Swing over bed: 570 mm
Swing over cross slide: 340 mm
Centre height: 285 mm
Machining length: 1500 mm
Centre distance: 1500 mm
Spindle speed: 1–3000 rpm
Main motor: 25 kW
Spindle nose: DIN 55027 Size 8
Tailstock quill: 90 mm
Tailstock taper: MT5
Tailstock stroke: 180 mm
3-jaw chuck
4-jaw chuck
2 steadies
Bed width: 350 mm
Machine width: 2200 mm
Machine height: 1970 mm
