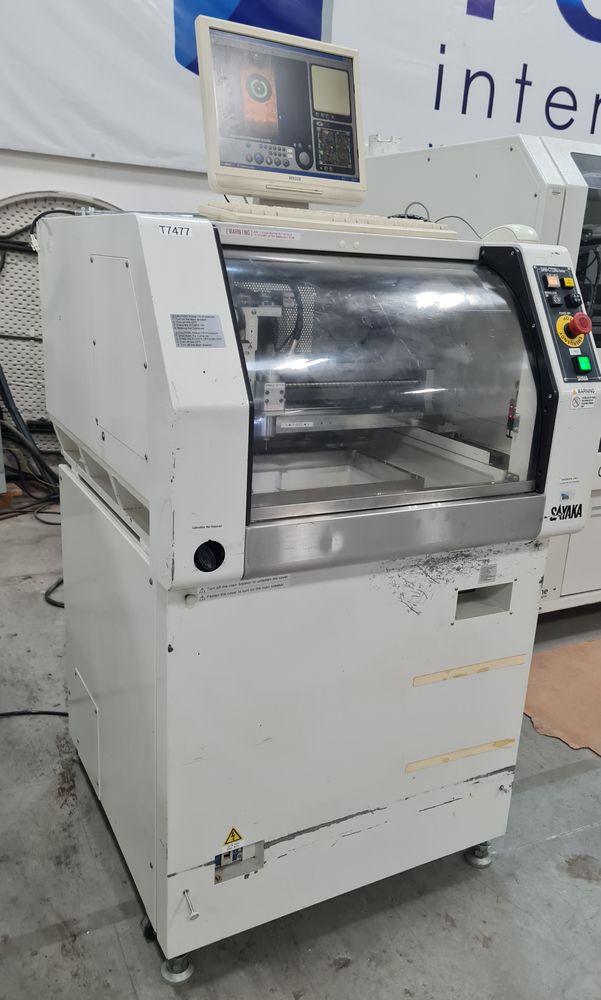

Seika SAM-CT23NJ(E) Stand Alone PCB Router

Machine software version: 1.0.6.8
Running in Windows XP

BASIC SPECIFICATIONS:
- PCB Size(Max.): 250×350mm
- PCB Thickness: 0.4-2.0mm
- PCB Material(Resin): FR4,CEM1,CEM3,etc.
- Router bit Diameter: φ0.8,φ1.0,φ1.2,φ1.5,φ2.0
- Cutting Speed(Max.): 50mm/sec
- Moving Speed(Max.): 800mm/sec
- Repeat Accuracy: ±0.01mm
- Z Axis Stroke(Max.): 40mm
- Router Depth Setting: Auto 5 stages
- Spindle Spec.: 5,000－60,000rpm
- X,Y,Z Axes Control: AC Servo
- Power Voltage: 3φAC200V　50/60Hz
- Power Consumption: 3.0KVA
- Pneumatic Pressure: 0.5Mpa
- Air Consumption: 20-30L/min (A.N.R)
- Weight for Main Unit: Approx.300kg
- Outer Dimension: W800×D852×H1322mm
