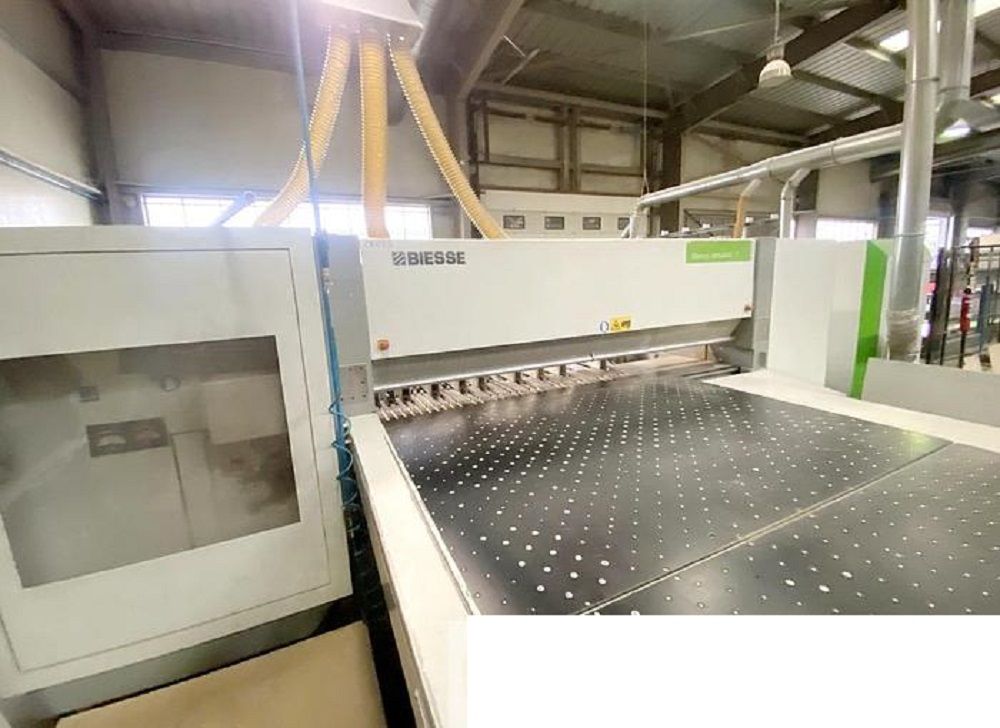

Selco WNAR 750

Angular Panel Saw
Angular sawing plant
Numerical Control OSI Plus - Software Optiplanning
N. 2 Pre-loading roller tables (mm) approx. 4500 x 2200 each
Lifting table (mm) 4500 x 2200

1° Rear-pusher, with No. 5 clamps/grippers
Turning device (rotating unit) at 90°
1° Panel saw (longitudinal) max. cutting width (mm) 4500
Max blade projection (mm) 152
Scoring Unit (max. diameter saw) mm approx. 215
Main Sawing Unit (max. diameter saw / power) mm 530 ( Kw 30)
Adjustable speed of the saw carriage (m/min) 1 - 170 m/min
Cutter for shredding trimmings

2° Rear-pusher, with No. 10 clamps/grippers
2° Panel Saw - Max cutting width mm 2200
Max blade projection (mm) 152
Scoring Unit (max. diameter saw) mm approx. 215
Main Sawing Unit (max. diameter saw / power) mm 530 (Kw 30)
Adjustable speed of the saw carriage (m/min) 1 - 170 m/min
No. 2 Front supporting tables with Air blowing system mm 2200 x 1500
Automatic unloader (bridge) for cut panels "RBO (BIESSE)" Mod. Lifter with 6 stacking stations
