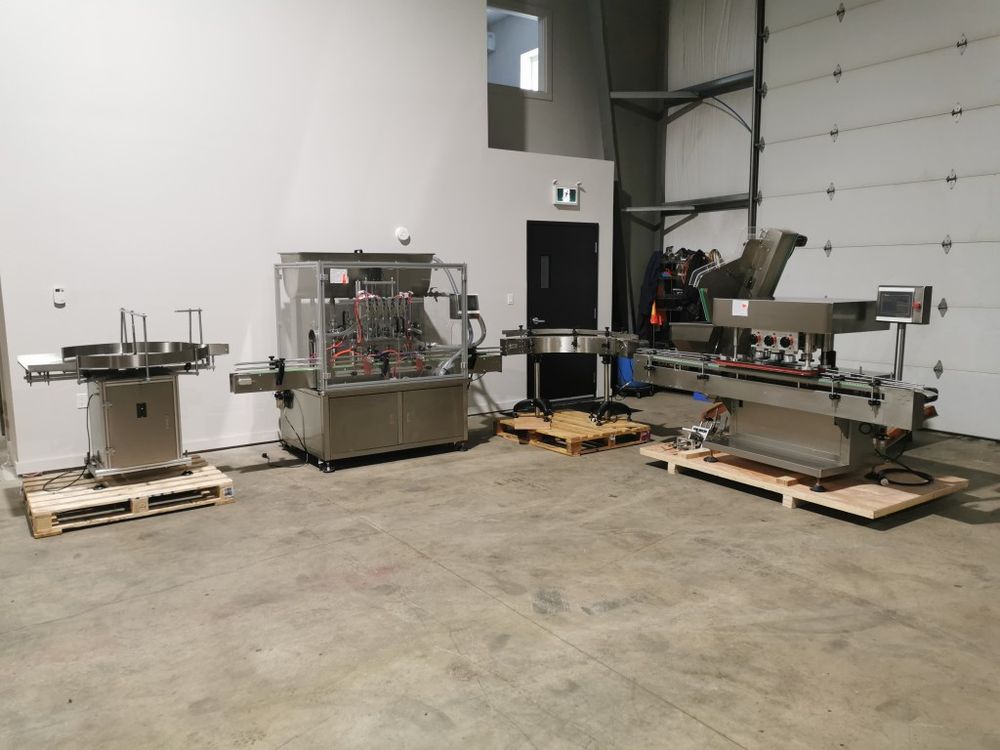

Shanghai Turntable, Filler, Capper

All stainless steel system. Bottle feed table
is 39.75" diameter
with variable speed controls. It feeds the 6 head in line piston filler (serial 2030cy0074)
The hopper is 50.25" wide x 19.5" long x 15.75" deep. The conveyor is 98.5" long x 3.25" wide table top chain. It has 500 ml pistons and can fill from 100 ml to 500 ml
The nozzles are 0.25" diameter
Touch screen controls. It can run 20 to 30 bottles per minute. Comes an extra set of 1 litre pistons it can fill from 200 ml up to 1 litre as well as a 2nd set of nozzles
The 90 deg conveyor has 4.5" wide table to chain belting and is variable speed. It feeds the 6 spindle capper (model xG 120B, serial 2813-03)
The capper has a raised bed conveyor that's 99" long x 4.5" wide table top chain. It has an adjustable cap chute with a spacing wheel and single side belt drive
Rated for caps sizes from 38 mm up to 70 mm
Touch screen controls
